DepthBoundsTest11 DirectX® 11 SDK Sample

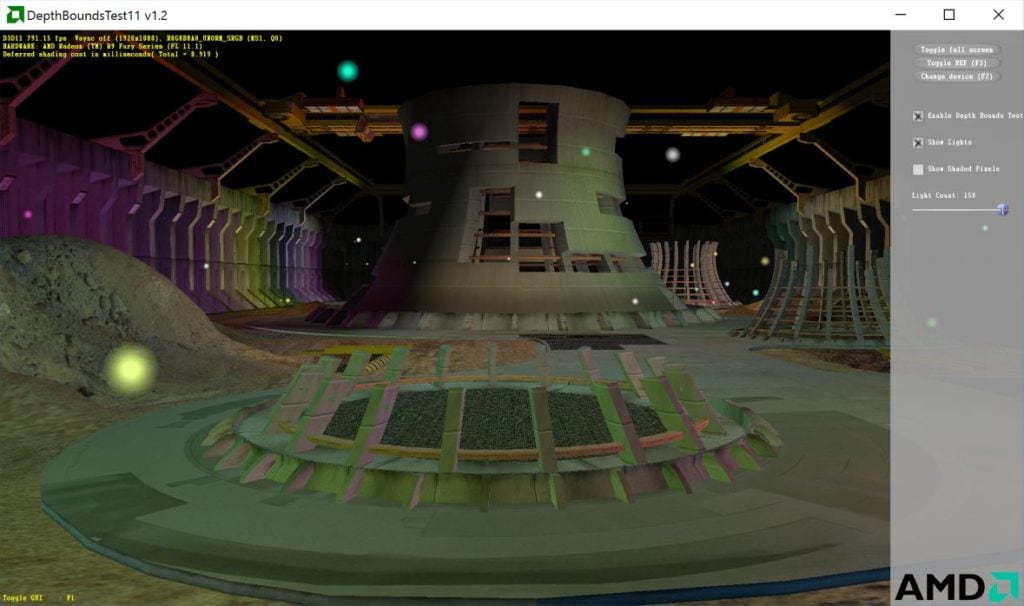

The DepthBoundsTest11 sample shows how to use the Depth Bounds driver extension.

View DepthBoundsTest 11 sample on GitHub

Depth Bounds Test is a feature on AMD Radeon™ HD 7000 series cards and later. It checks to see if the current depth values are within a certain range (bounds). Drawing is allowed for pixels where the depth is in range, and culled for depths outside the bounds.

Note that the comparison is made with the current depth values in the depth buffer, not the depth value of the pixel to be written. The sample demonstrates a performance improvement you can get with this feature when using deferred rendering.

Requirements

  • AMD Radeon™ GCN-based GPU (HD 7000 series or newer).
  • 64-bit Windows® 7 (SP1 with the Platform Update), Windows® 8.1, or Windows® 10.
  • Visual Studio® 2012, Visual Studio® 2013, or Visual Studio® 2015.
