AMD FidelityFX™ Depth of Field (DoF) background

AMD FidelityFX™ Depth of Field (DoF)

Physically correct camera-based

AMD FidelityFX™ Depth of Field (DoF) is an AMD RDNA™-architecture optimized implementation of physically correct camera-based depth of field.

Supports:

  • DirectX® 12
  • Vulkan®

Part of the AMD FidelityFX™ SDK

AMD FidelityFX SDK components

Download the latest version - v1.1.4

Download AMD FidelityFX™ SDK v1.1.4 packageView AMD FidelityFX™ SDK on GitHubRead the AMD FidelityFX™ DoF documentation

This release of the AMD FidelityFX™ SDK adds the following features:

  • Additions to the API and fixes for issues discovered.

Features

State-of-the-art algorithm

RDNA™-optimized

Smart shader selection (SM 6.6+ when present)

Open source, MIT license

Easy to integrate

Cross platform

Details

AMD FidelityFX™ Depth of Field (DoF) features the following:

  • AMD FidelityFX™ DoF sample code
  • Native DirectX® 12 and Vulkan® SDK backend implementation libraries
  • Easy-to-integrate effect components for all effects
  • Custom Cauldron-based SDK backend implementation example
  • Re-architected graphics framework

For more information, don’t miss our extensive documentation.

Developer Testimonials

Example

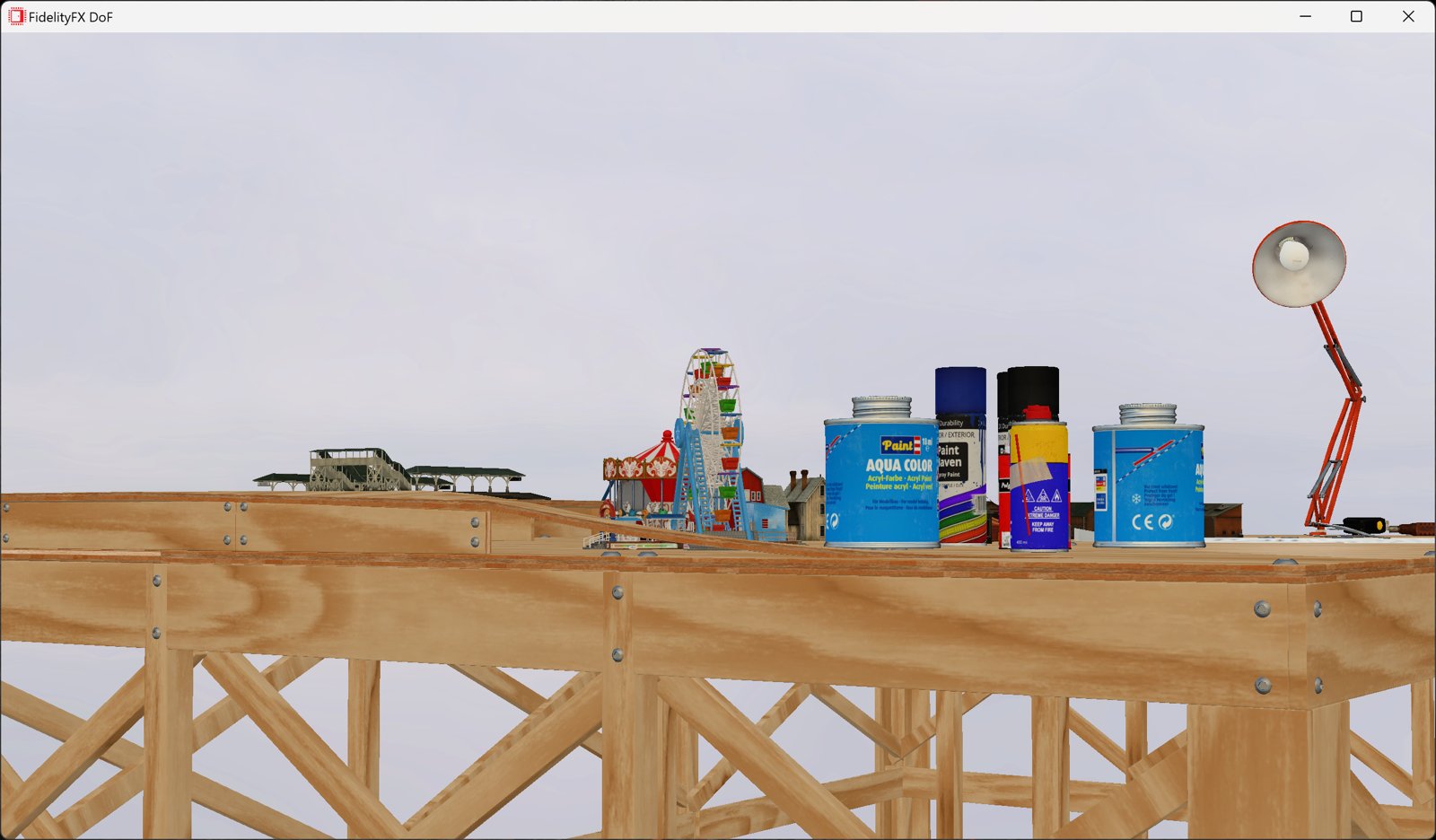

DoF off

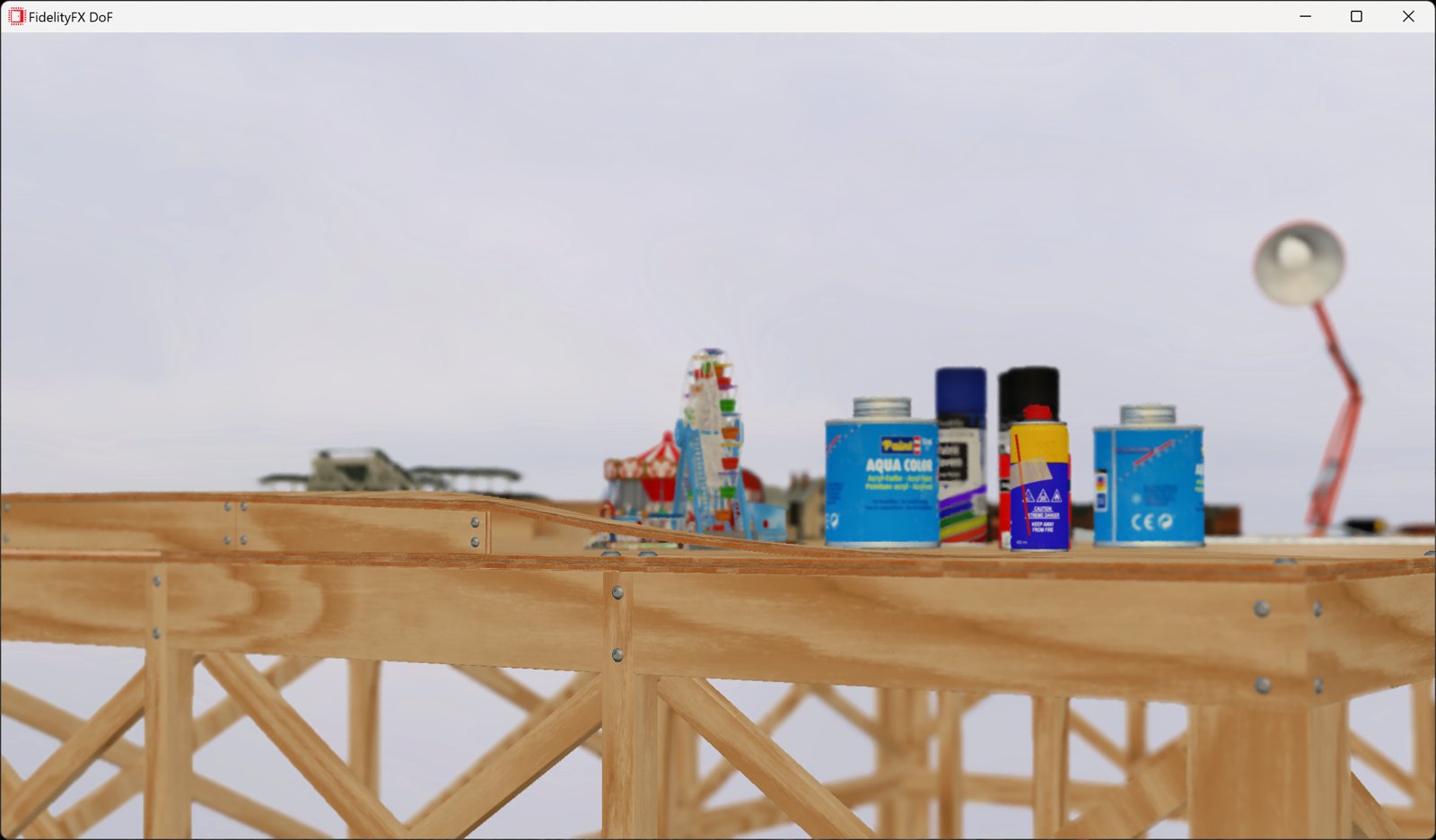

DoF on

Requirements

Requires AMD GCN-architecture class GPUs and above.

Version history

  • The AMD FidelityFX™ SDK 1.1.4 is a patch release that includes additions to API and fixes for issues discovered with AMD FSR 3.1.0 to 3.1.3.

  • Exposed 4 new tunings to reduce AMD FSR upscaler ghosting in newly disoccludded pixels or highly reactive pixels.

  • Changed the default value of fMinDisocclusionAccumulation to -0.333 (from equivalent of 0.333 in AMD FSR 3.1.3) to reduce disocclusion ghosting.

  • Added ffxQueryGetProviderVersion to get version info from created ffx-api context.

  • Exposed ffxDispatchDescFrameGenerationPrepareCameraInfo as a linked struct. It is a required input to AMD FSR 3.1.4 and onwards for best quality.

  • Added frame generation debug checker support.

  • Dropped unused interpolation command lists if frame generation callback fails, to fix infinite wait at swapchain destruction.

  • General fixes to Vulkan® Frame Interpolation Swapchain.

  • General framework fixes and updates.

  • Frame pacing debug line added to Vulkan®.

  • Added new FFX error when create frame interpolation swapchain results in E_ACCESSDENIED in DX12 due to overlay or capture software.

  • Enabled support for frame interpolation swapchain on Windows® 10 1909 and potentially earlier versions.

  • Fixed flipped disocclusion factor from previous and current backbuffer.

  • Fixed HDR mode issues in Cauldron sample.

  • Fixed MSVC C compile errors including ffx-api.

  • The AMD FidelityFX™ SDK 1.1.4 also updates the following to address select issues:

  • AMD FidelityFX™ Brixelizer GI 1.0.1

  • AMD FidelityFX™ Breadcrumbs 1.0.1
