FSR 2.1 UE plugin enhancements part 1: Intro & improving foliage appearance using the base pass

What is this blog post series about?

When we made FSR 2.1 available, we also updated our FSR 2 Unreal Engine plugin. This update not only brings significant improvements to the plugin generally, but we’ve also provided two patches with the package which can increase visual fidelity.

This five part blog post series – this is the first part – highlights the issues these patches address, and how you can use them in your own Unreal Engine projects.

AMD FSR 2

→ Part 1 – Improving foliage appearance: Introduction and using the base pass for velocity generation.

Part 2 – Improving foliage appearance: Improvements via content changes.

Part 3 – Improving foliage appearance: Applying the ImproveStaticWPO patch.

Part 4 – Making materials reactive: How to make a specific shading model write to the reactive mask.

Part 5 – Making materials reactive: Applying the LitReactiveShadingModel patch.

Introducing part 1

Here in part 1, we discuss how to improve foliage appearance, and one of the ways this can be achieved by using the base pass for velocity generation.

Improving foliage appearance

Within Unreal Engine, one of the most common ways to animate foliage is to use World Position Offset (WPO) within a material to add gentle motion to the geometry without having to resort to full animations and Skeletal Mesh rendering. This animates each vertex directly and by default won’t generate any motion vectors unless the object is itself moving.

For upscalers such as FSR 2, this can result in sub-optimal upscaling results as the algorithm cannot interpret the motion of the foliage, resulting in ghosting as history samples are weighted incorrectly. The FSR 2 plugin can enable the console variables r.VertexDeformationOutputsVelocity (UE 4.27 or earlier) or r.Velocity.EnableVertexDeformation (UE 5.0 or later) which force such materials to write the motion vectors, provided the object the materials are used on has Stationary or Movable mobility.

When objects have their mobility set to Static, Unreal Engine has an optimisation to skip calculating motion vectors for such objects as they are not expected to move or animate.

For the default upscaler in Unreal Engine, this is not typically a noticeable issue as the algorithm is tuned to handle such small motion as provided by WPO. However, FSR 2 is much more sensitive to both the presence and fidelity of motion vectors provided by the game.

It is therefore necessary to either:

  • Change the project to enable the r.BasePassOutputsVelocity engine setting.
  • Change the object mobility in the editor, and modify the material to force generation of motion vectors.

Enabling r.BasePassOutputsVelocity forces velocity generation to occur in the base pass rather than as a separate pass, and the FSR 2 plugin enables r.BasePassForceOutputsVelocity to ensure that all objects render velocity to avoid these issues. However, this does increase the GPU work for all objects regardless of whether they use a WPO material.

To make it easier to achieve the optimal result the FSR 2 plugin now includes the ImproveStaticWPO.patch which modifies the engine to automatically generate motion vectors for all objects using a material using WPO regardless of mobility setting.

Example

A Boy and His Kite‘ in Unreal Engine 4.27

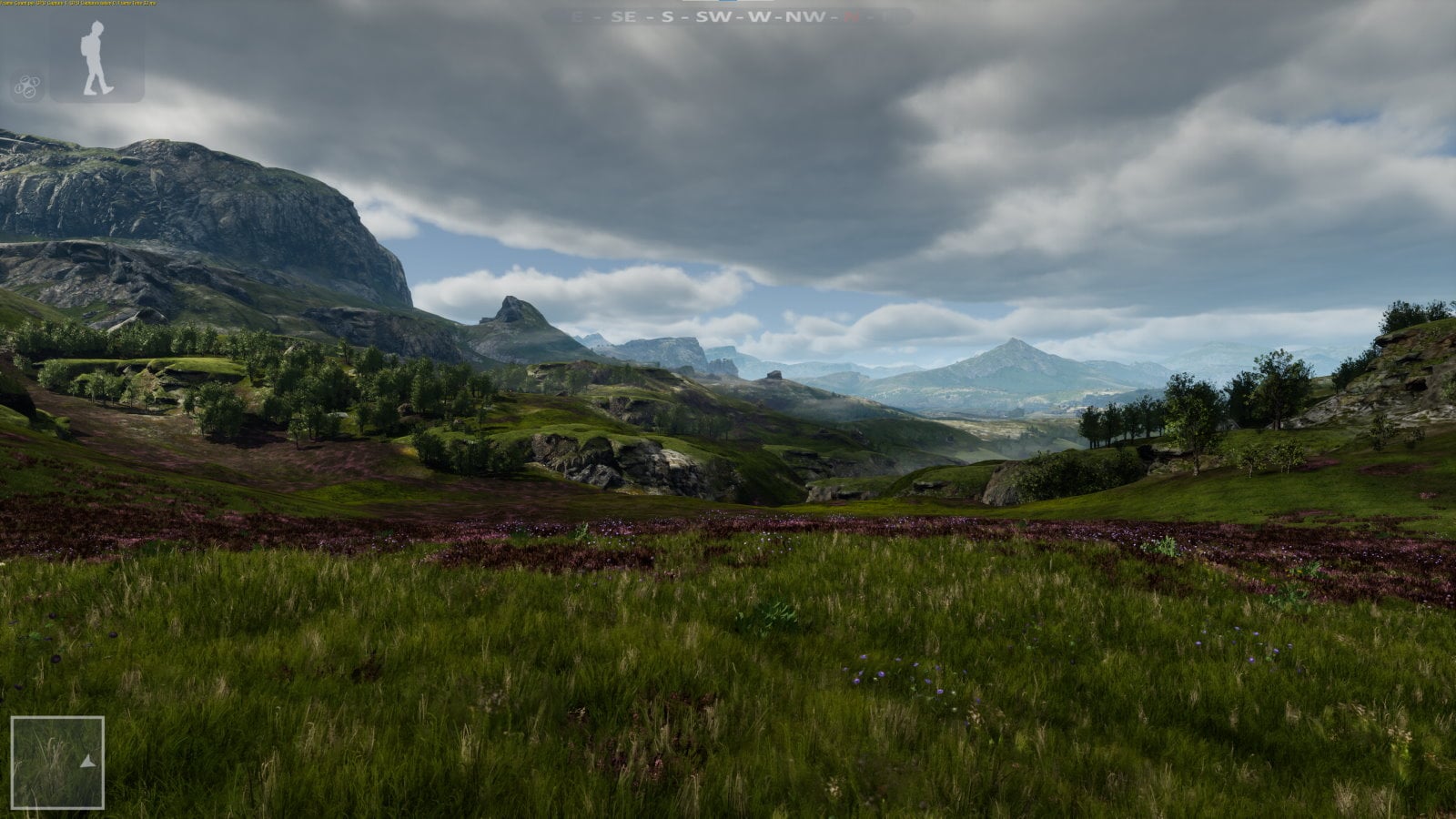

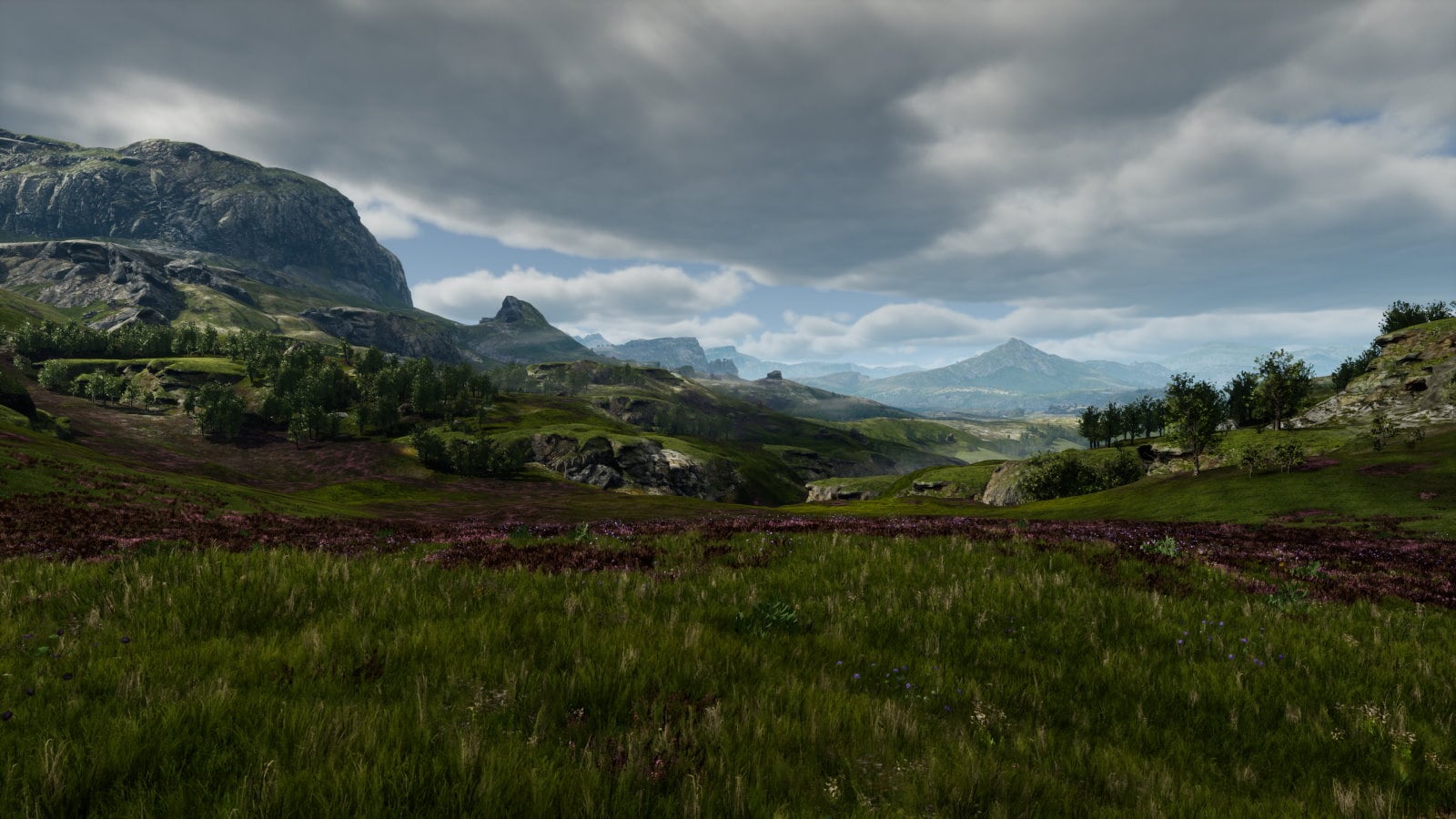

TAAU FSR 2.0.1

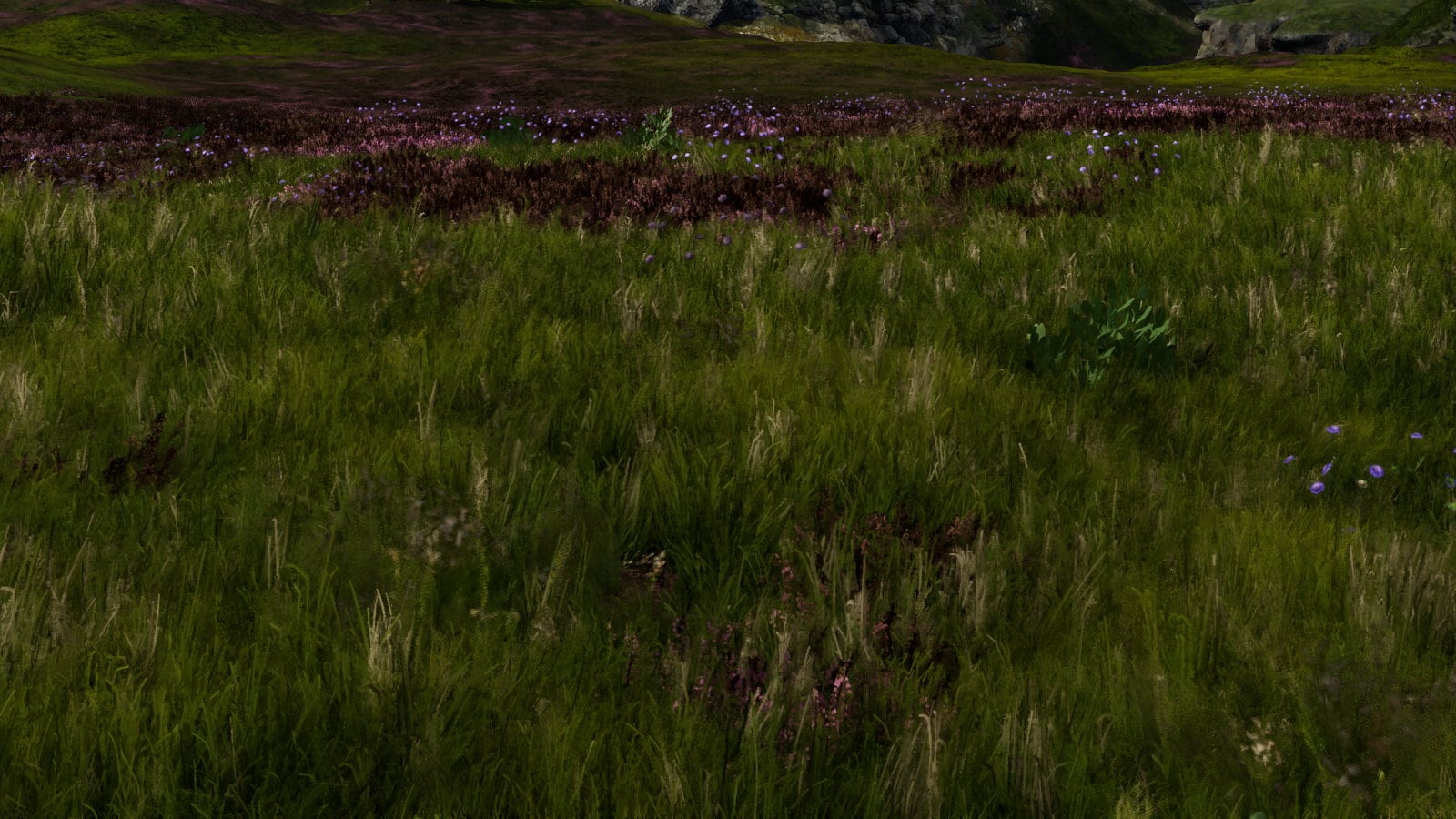

Close up 1:1 pixel view: (screenshot is JPEG @ 85% compression)

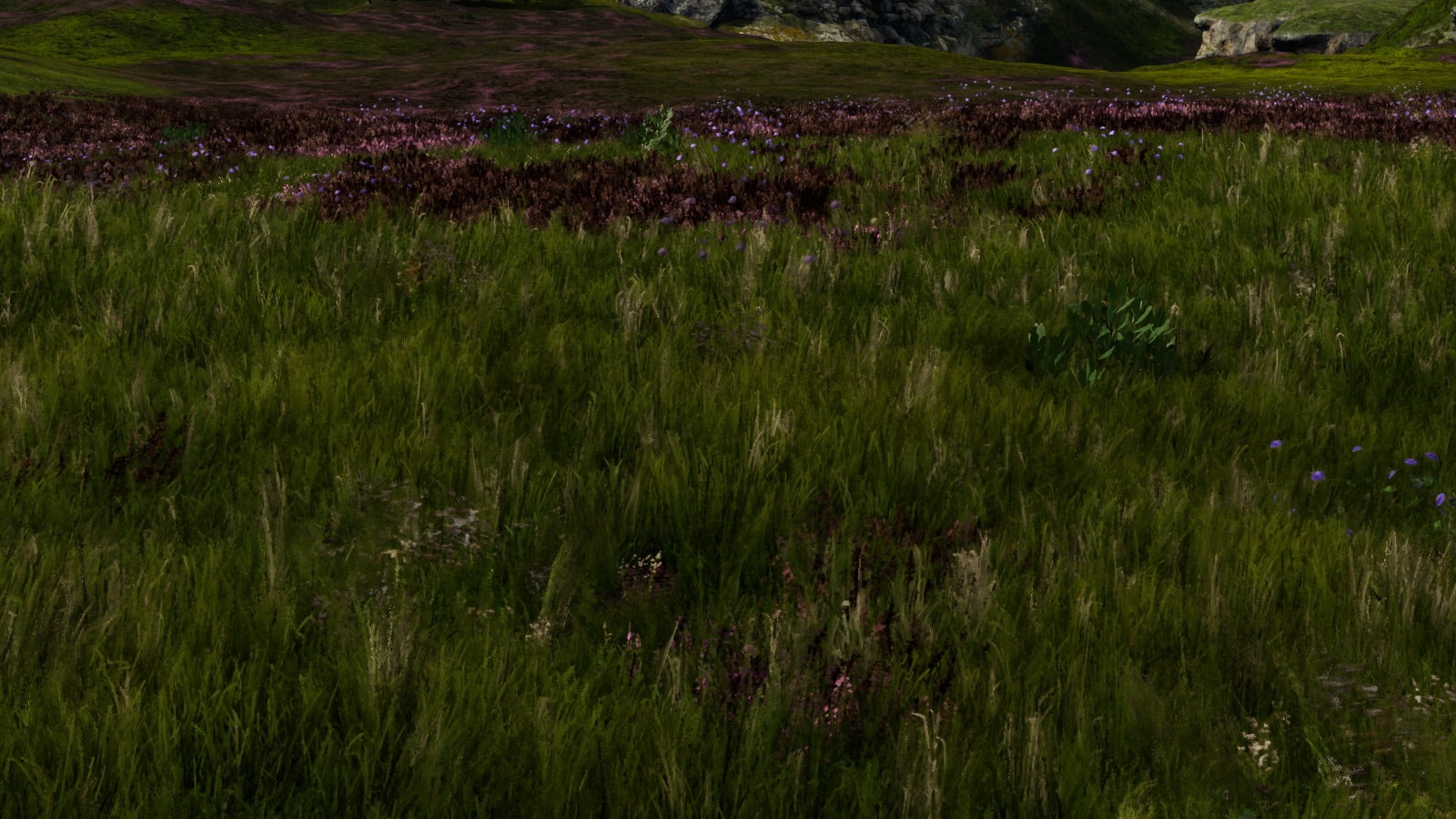

TAAU FSR 2.0.1

When using FSR 2 by default, the grass nearest the camera appears blurred.

The FSR 2 plugin already enables console variables r.VertexDeformationOutputsVelocity (<= 4.27) or r.Velocity.EnableVertexDeformation (>= 5.0) to force WPO materials to render velocity but visualising the velocity data (below) shows that these objects do not render velocity.

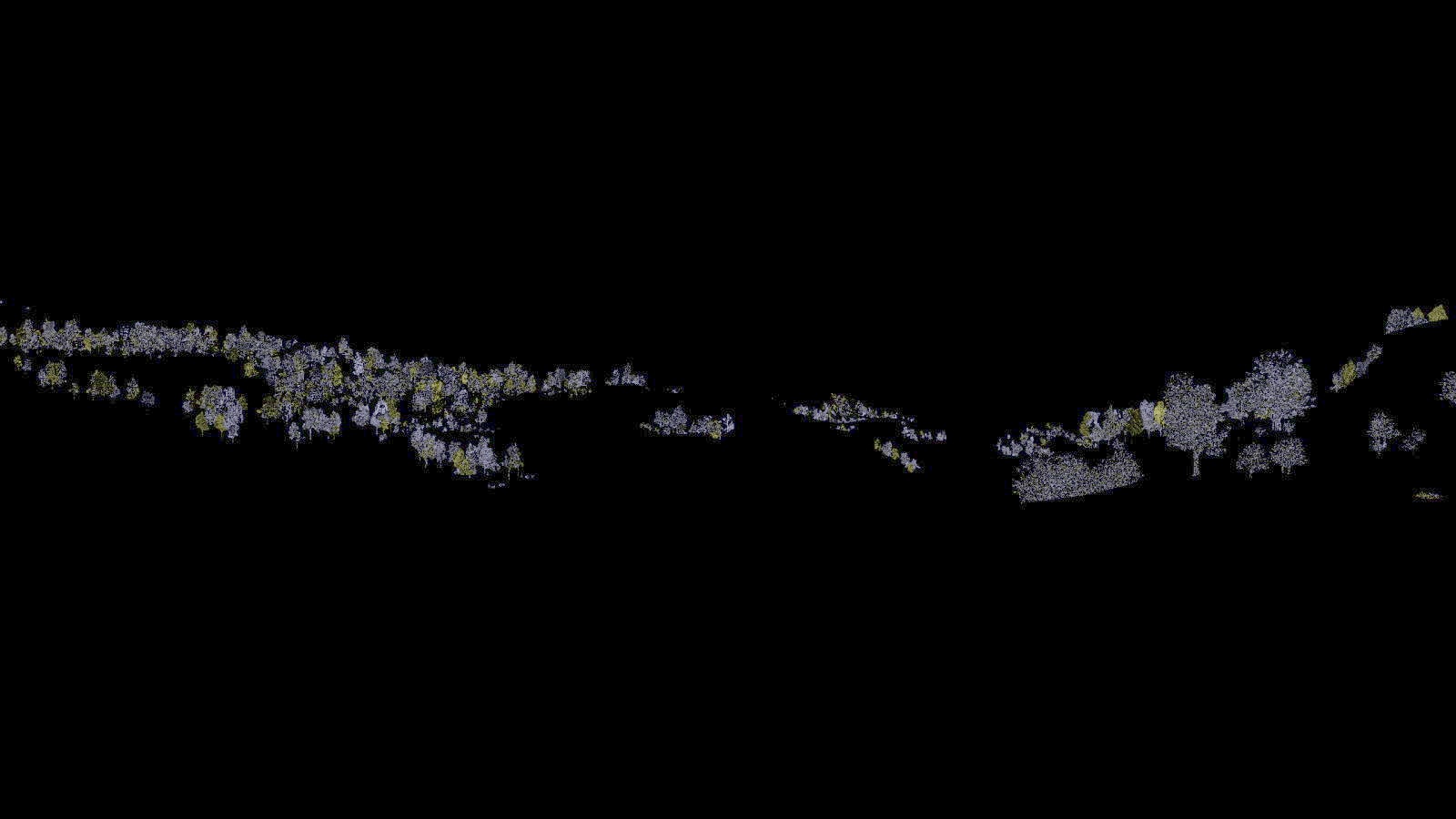

Unpatched UE4 4.27 velocity data

TAAU FSR 2.0.1

Improvements when outputting velocity during the base pass

This project enables the r.BasePassOutputsVelocity setting by default which means that velocity data is written during the base pass. This changes the engine’s behavior slightly and allows the FSR 2.1 plugin to also enable the r.BasePassForceOutputsVelocity setting which then emits velocity data for all objects on screen and ensures that FSR 2 has the motion vectors required.

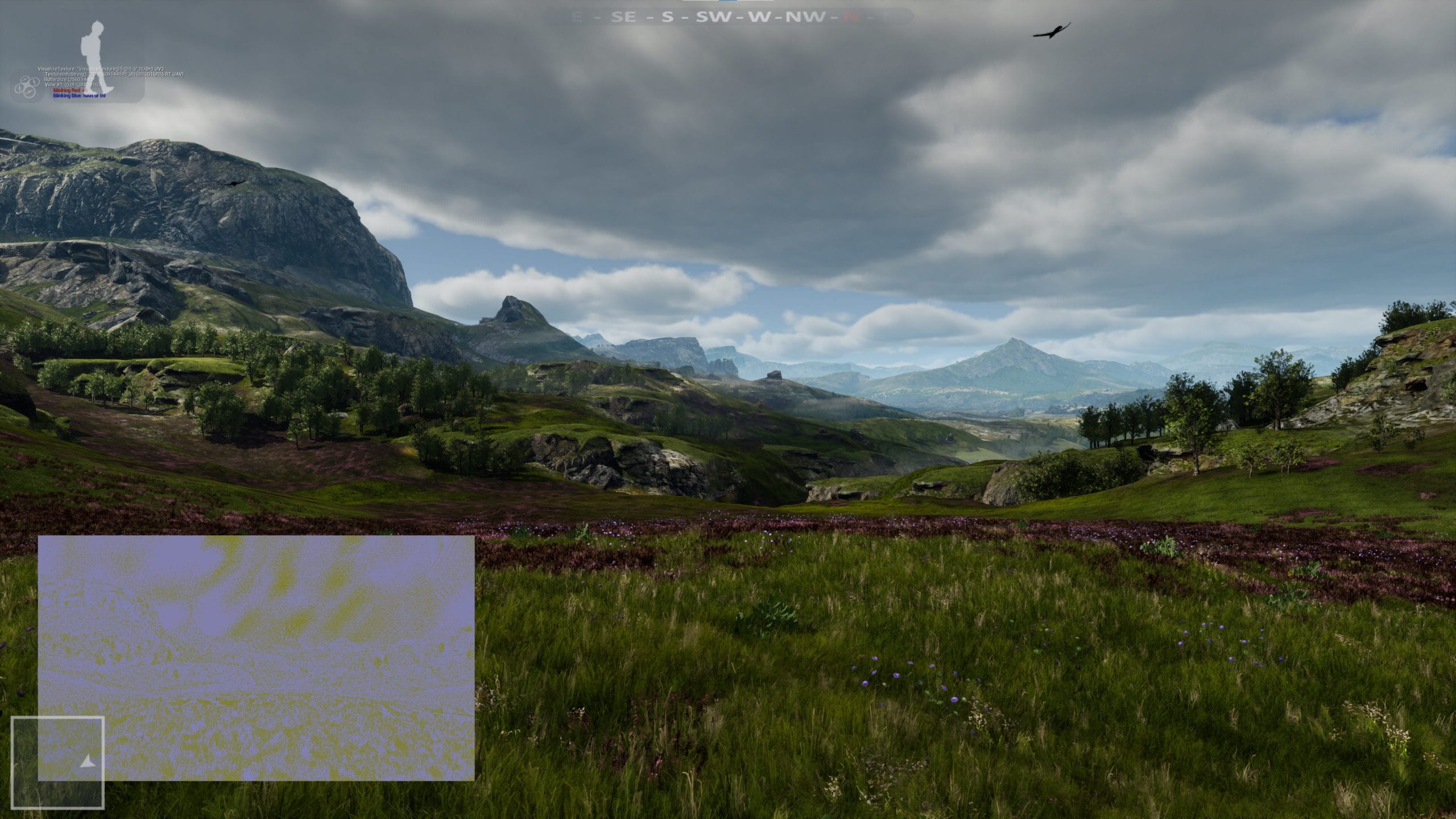

Unpatched UE4 4.27 FSR2.1 - Velocity inset
Unpatched UE4 4.27 FSR2.1 - Velocity inset

For projects already using r.BasePassOutputsVelocity this is now the default behavior and will ensure optimal quality by default. However, this does increase the GPU work required as now all the objects are emitting velocity even when they might not need to.

Projects that are not already using r.BasePassOutputsVelocity but that use a lot of materials with World-Position-Offset should consider enabling this setting and profiling as in many cases this will work sufficiently without requiring significant investment.

This is the simplest option when using the binary version of the editor.

Coming up next

Continue reading in part 2 to find out how to address some of these issues via content changes rather than relying upon r.BasePassOutputsVelocity or the source code patch. When using the binary version of the editor, making content changes is the only other option to improve quality as the the patch requires modifying the Unreal Engine code.

Alternatively, feel free to skip ahead to one of the other parts:

Part 1 – Improving foliage appearance: Introduction and using the base pass for velocity generation.

→  Part 2 – Improving foliage appearance: Improvements via content changes.

Part 3 – Improving foliage appearance: Applying the ImproveStaticWPO patch.

Part 4 – Making materials reactive: How to make a specific shading model write to the reactive mask.

Part 5 – Making materials reactive: Applying the LitReactiveShadingModel patch.
