FSR 2.1 UE plugin enhancements part 4: Making a specific shading model write to the reactive mask

What is this blog post series about?

When we made FSR 2.1 available, we also updated our FSR 2 Unreal Engine plugin. This update not only brings significant improvements to the plugin generally, but we’ve also provided two patches with the package which can increase visual fidelity.

This five part blog post series – this is part 4 – highlights the issues these patches address, and how you can use them in your own Unreal Engine projects.

AMD FSR 2

Part 1 – Improving foliage appearance: Introduction and using the base pass for velocity generation.

Part 2 – Improving foliage appearance: Improvements via content changes.

Part 3 – Improving foliage appearance: Applying the ImproveStaticWPO patch.

→  Part 4 – Making materials reactive: How to make a specific shading model write to the reactive mask.

Part 5 – Making materials reactive: Applying the LitReactiveShadingModel patch.

Introducing part 4

Back in part 3, we showed you how to apply the ImproveStaticWPO patch, and the results.

Here in part 4, we show you how to improve the visual quality of animated materials by making shading models write to the reactive mask.

Making materials reactive

Following on from the foliage improvements discussed in the first part of this series, another improvement introduced with the FSR 2.1 plugin is the addition of an option to make a specific shading model write to the reactive mask. This is useful in circumstances where a material animates which can cause the upscaler to produce suboptimal results as no motion vectors will exist for the moving pixels.

This is especially noticeable when the animated material is obscured by a fine mesh or grill as this confuses the algorithm without motion vectors to indicate what is moving.

Example

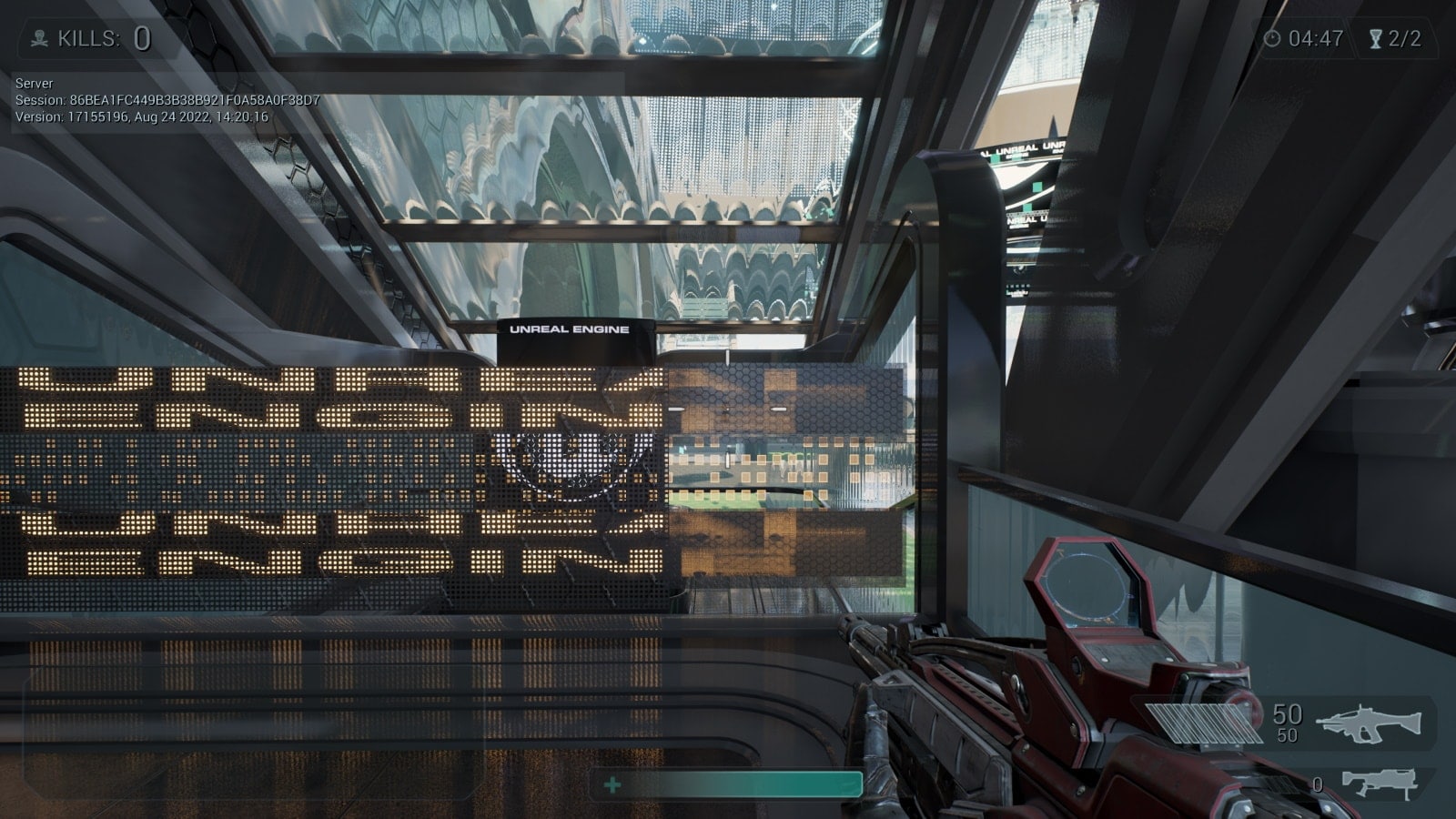

Below is a modified version using UE 4.27 of the ShooterGame sample. A grid has been placed in front of some animated billboards which have been modified to scroll vertically rather than horizontally, use the Default Lit Shading Model, and render opaque. These modifications to the sample make it much easier to see the ghosting that can occur with FSR 2 compared to the default upscaler.

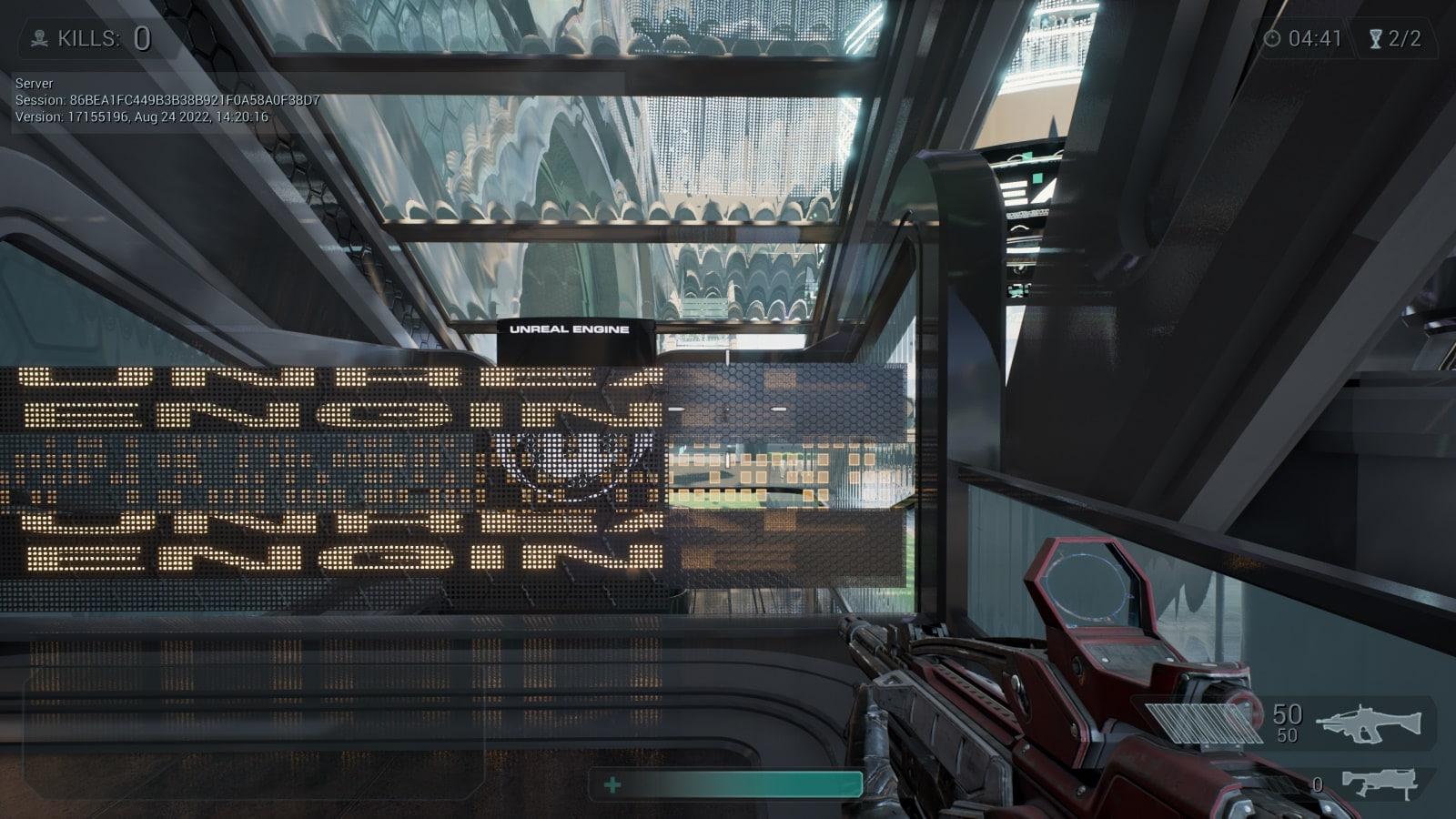

TAAU FSR 2.0.1

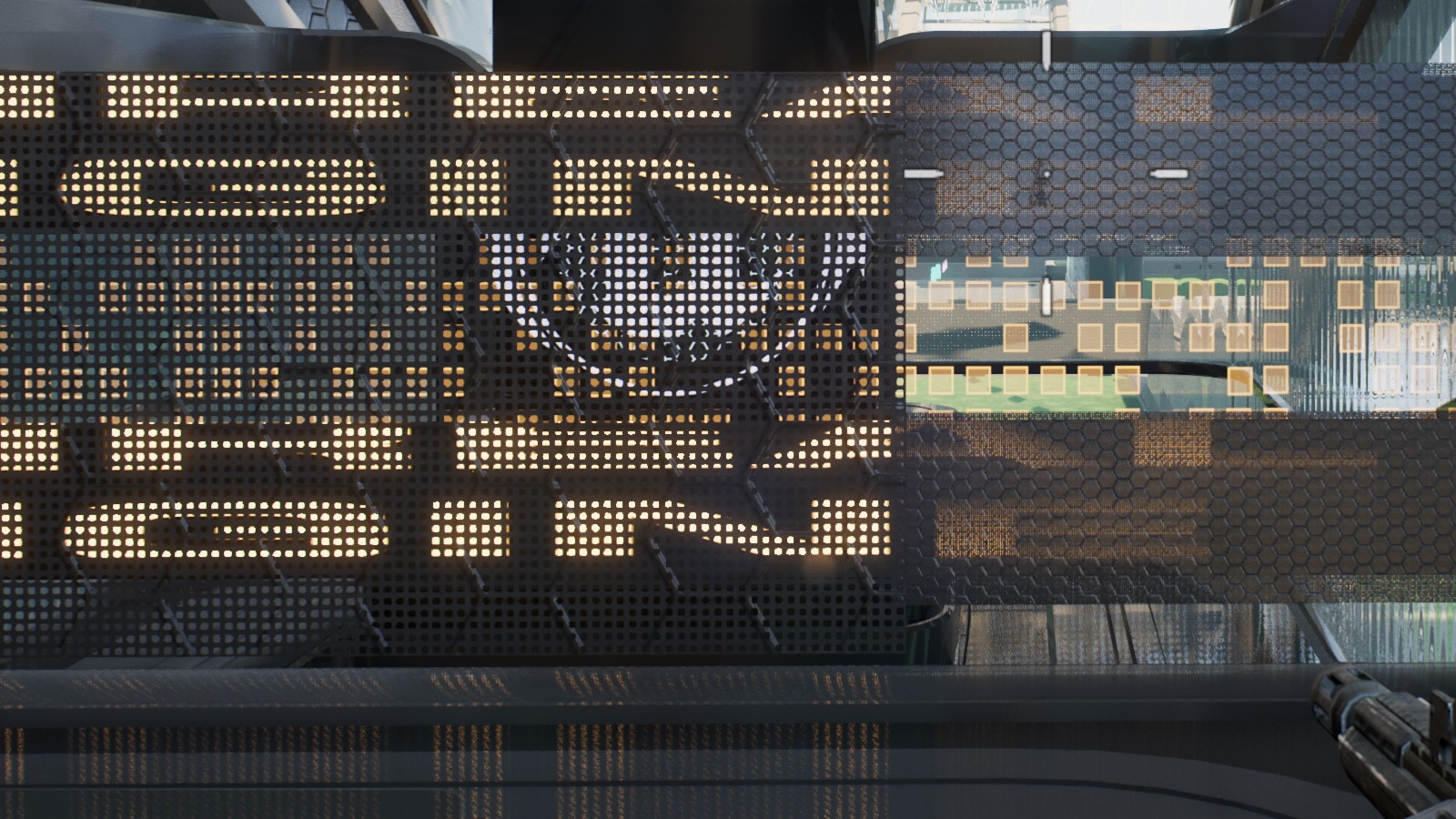

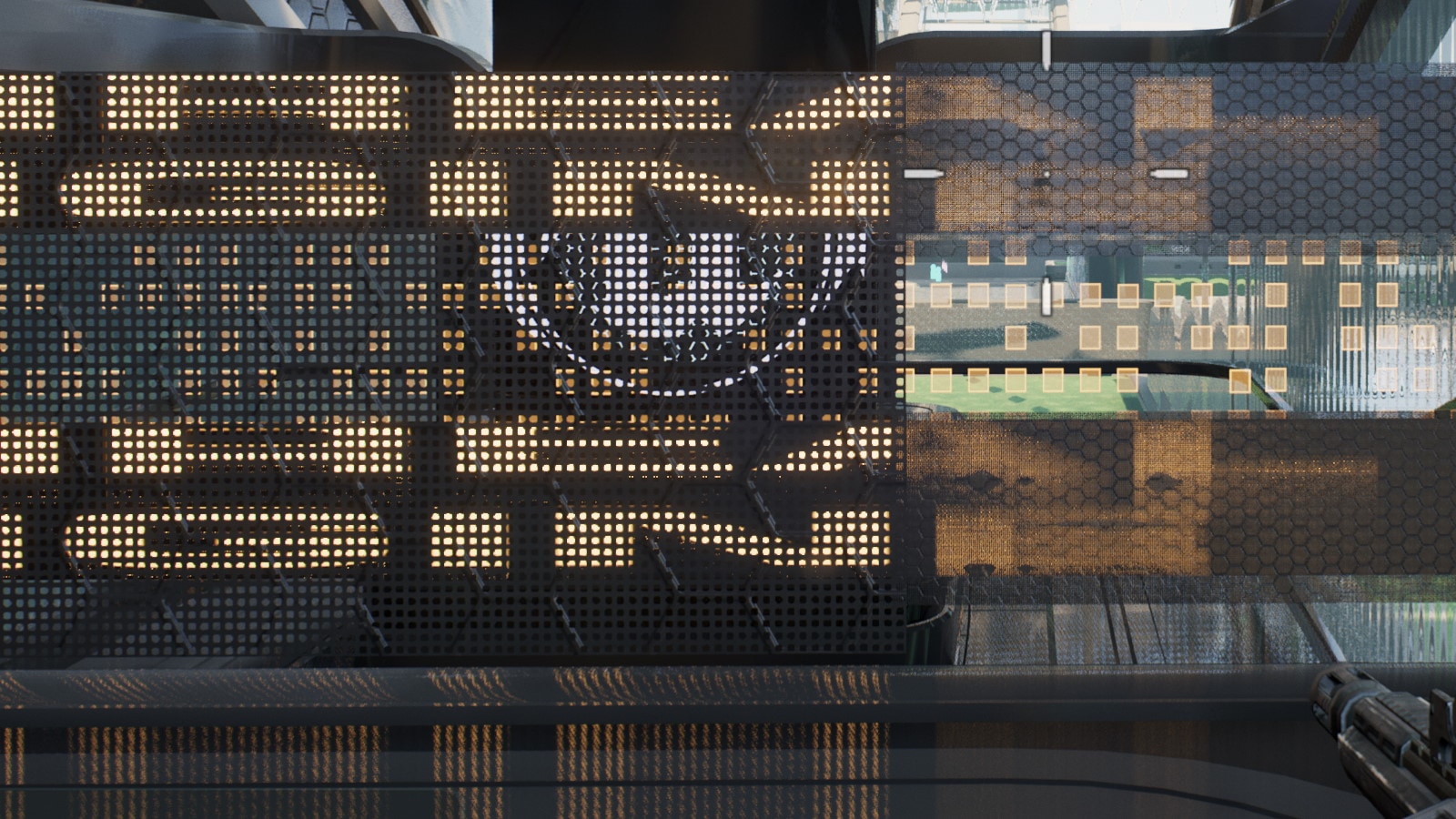

Below: 1:1 pixel comparison of 4K screenshot.

TAAU FSR 2.0.1

Solution

In FSR 2.1 there are now options to alleviate this issue by having animated materials write into the reactivity mask. This reduces the ghosting.

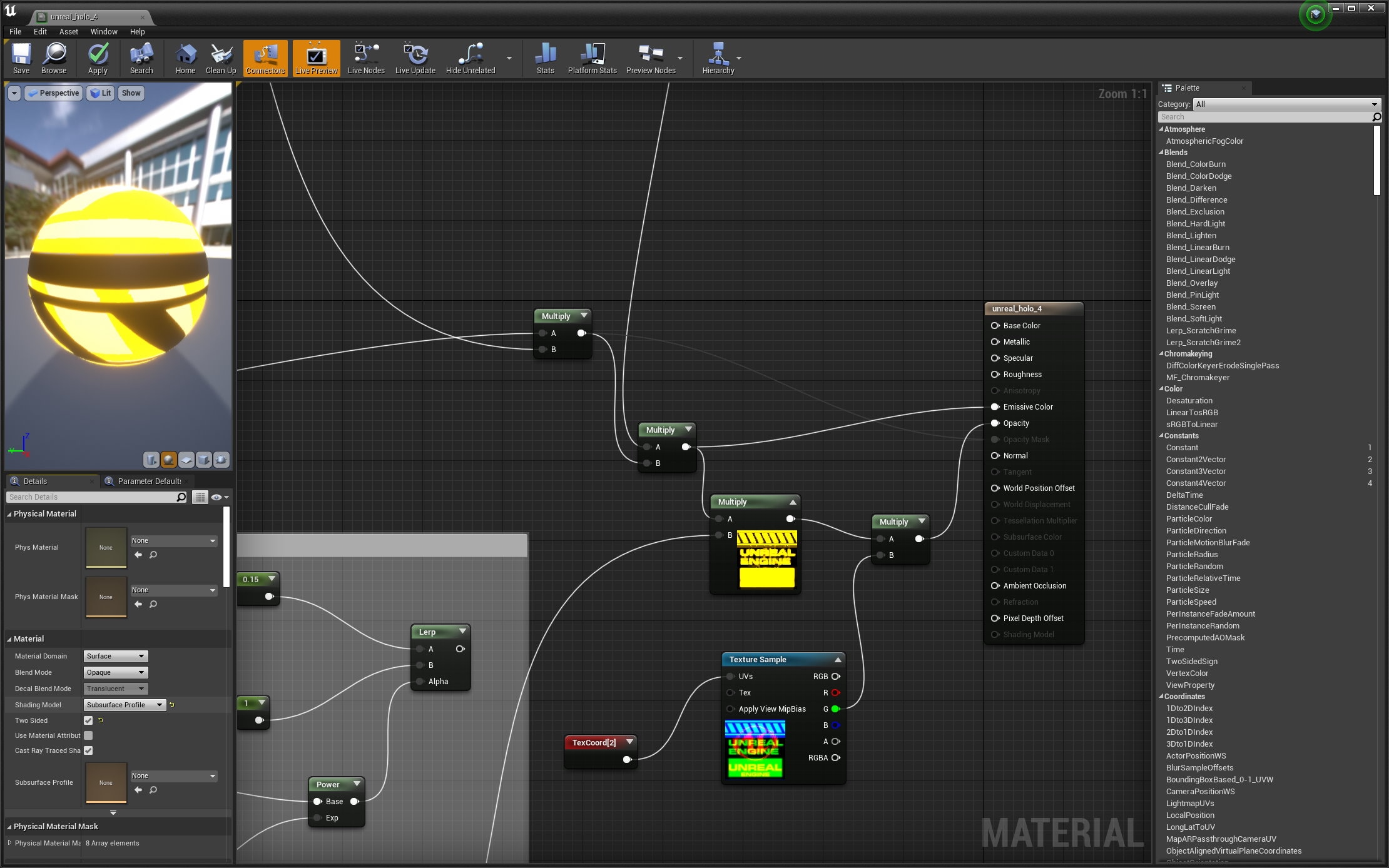

The simplest option is to set the Material shading model to one that still renders acceptably but is not otherwise used in the scene. In the example below there is no other use of the Subsurface Profile model, so this option can be used in the material.

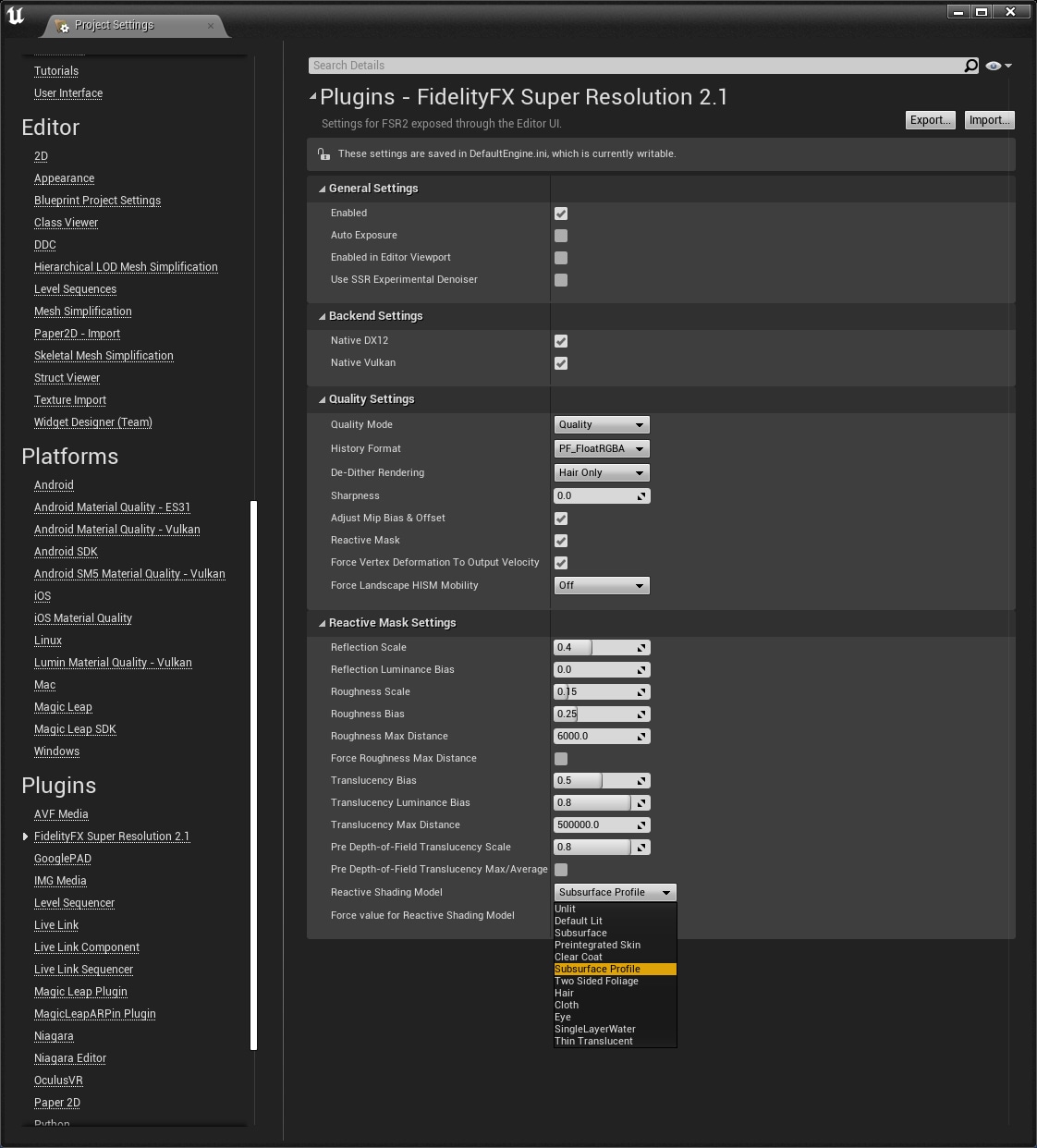

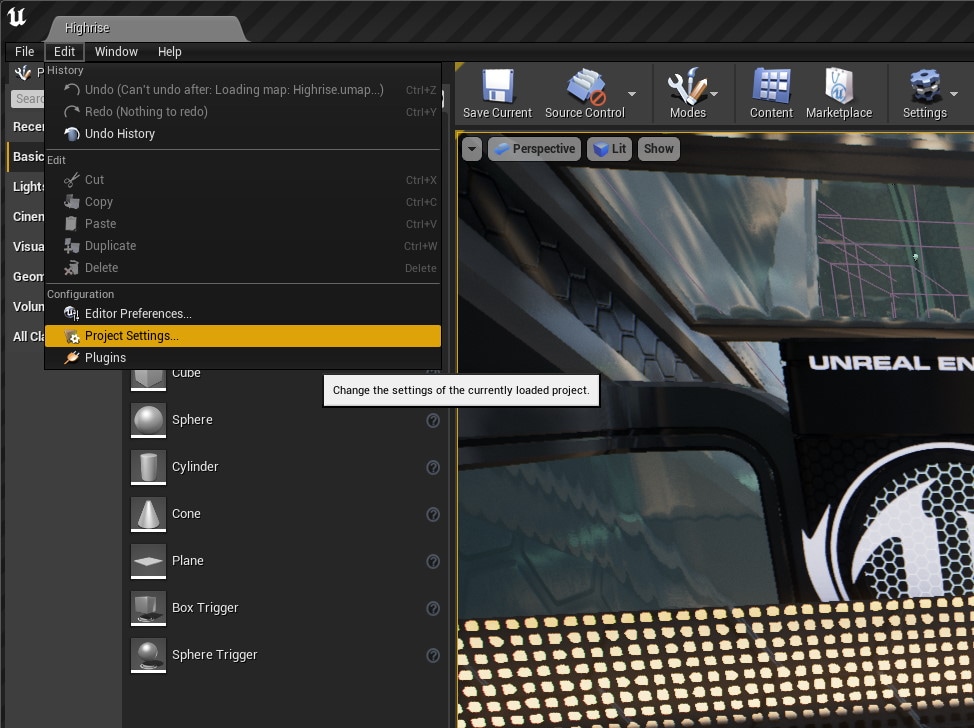

Once the unused shading model has been selected for the material. Go to Project Settings > Plugins > FidelityFX Super Resolution 2.1 and select the chosen shading model in the Reactive Shading Model drop-down menu so that it will write into the reactive mask and set the Force value for Reactive Shading Model.

With these settings enabled, the billboard material is identified in the FSR 2 pass that creates the reactive mask. The value of Force value for Reactive Shading Model is written into the reactive mask.

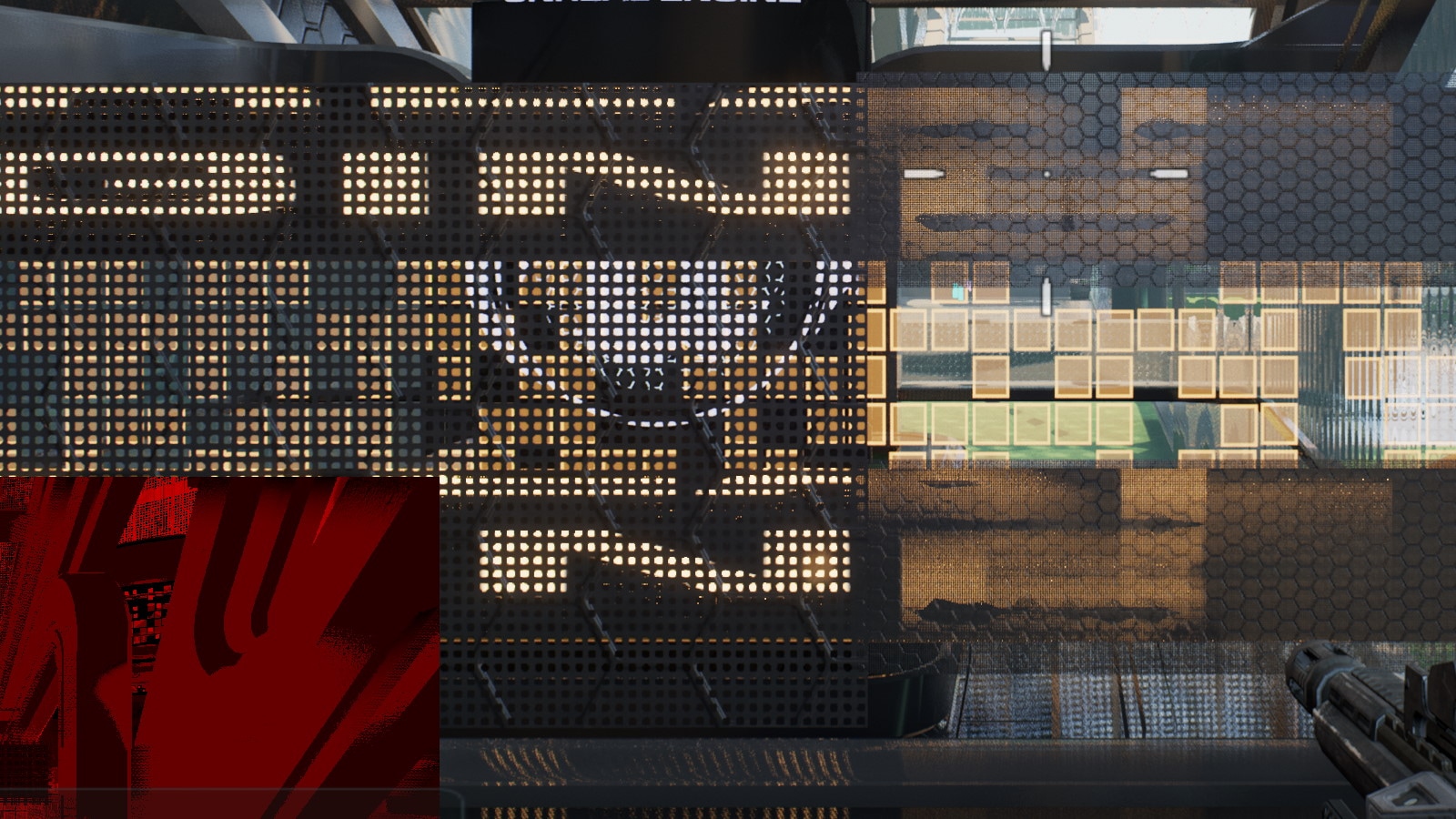

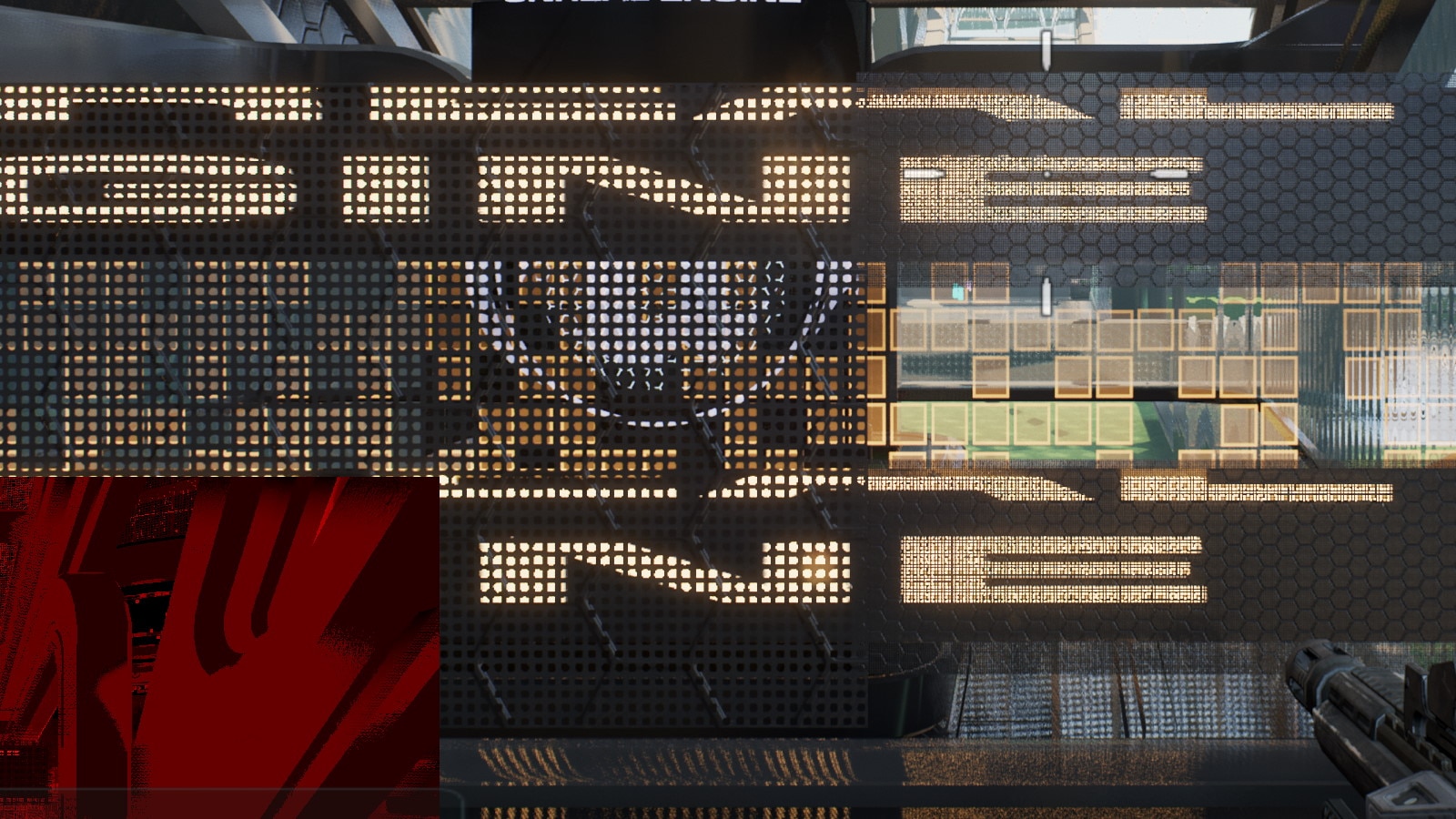

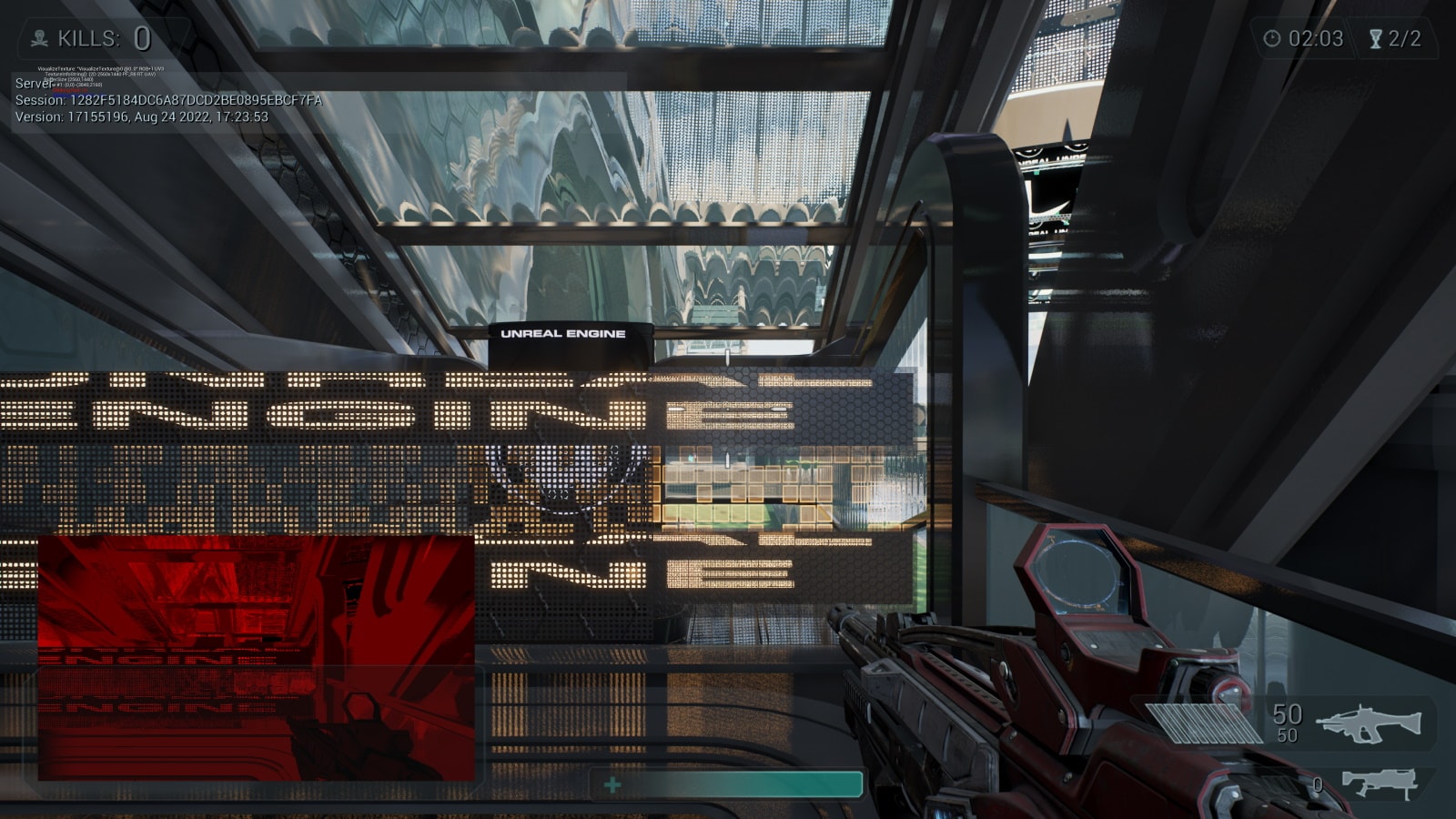

The comparison screenshots below using UE 4.27 show the FSR 2.1 default on the left, and “Reactive Shading Model” plus “Force value for Reactive Shading Model” enabled on the right.

UE4.27 FSR 2.1 Default UE4.27 FSR 2.1 'Reactive Shading Model' and 'Force value for Shading Model' enabled

Below: 1:1 pixel comparison of 4K screenshot above.

UE4.27 FSR 2.1 Default UE4.27 FSR 2.1 'Reactive Shading Model' and 'Force value for Shading Model' enabled

Comparing the result, the billboard no longer ghosts along the axis of motion and remains sharp.

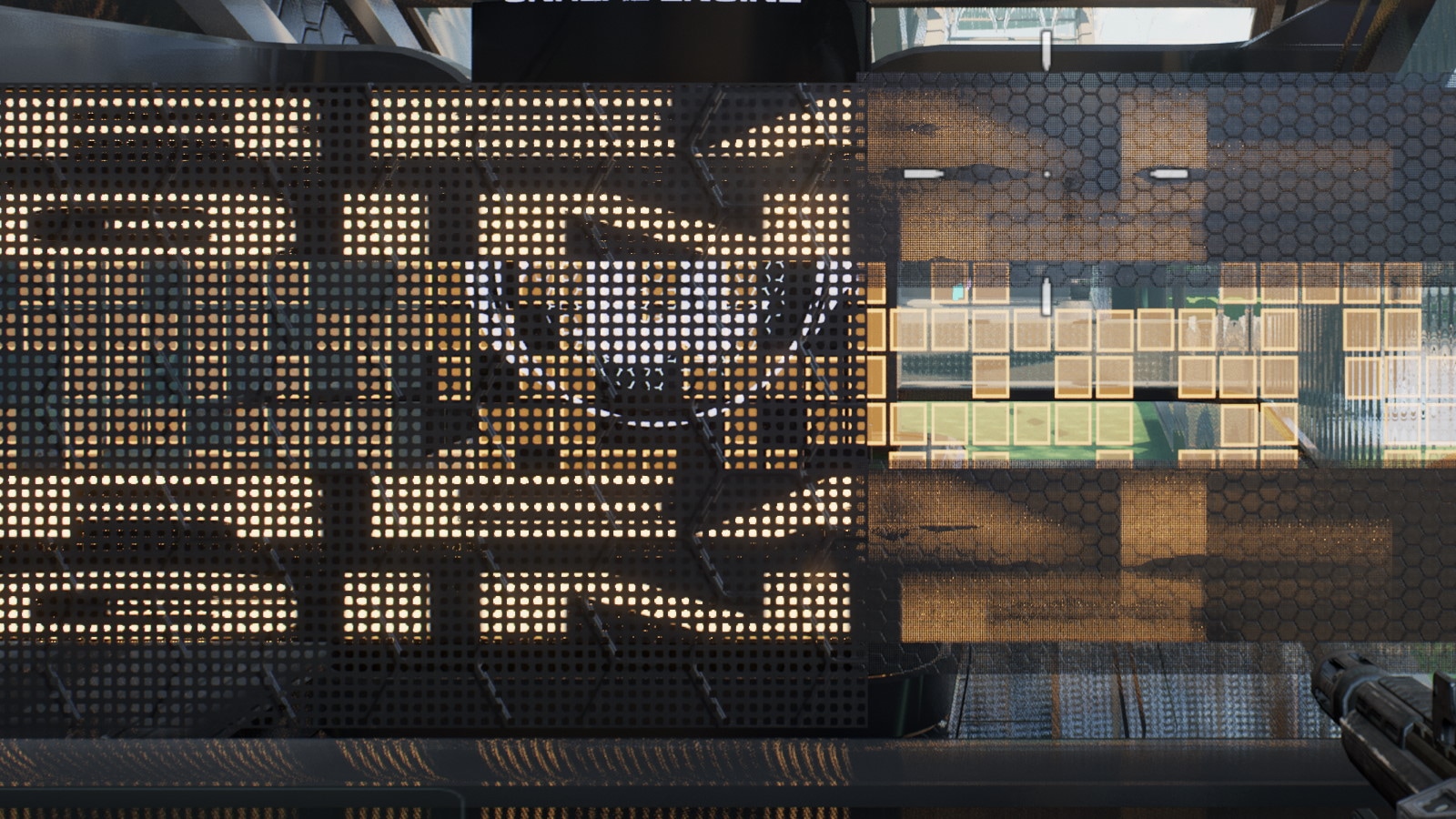

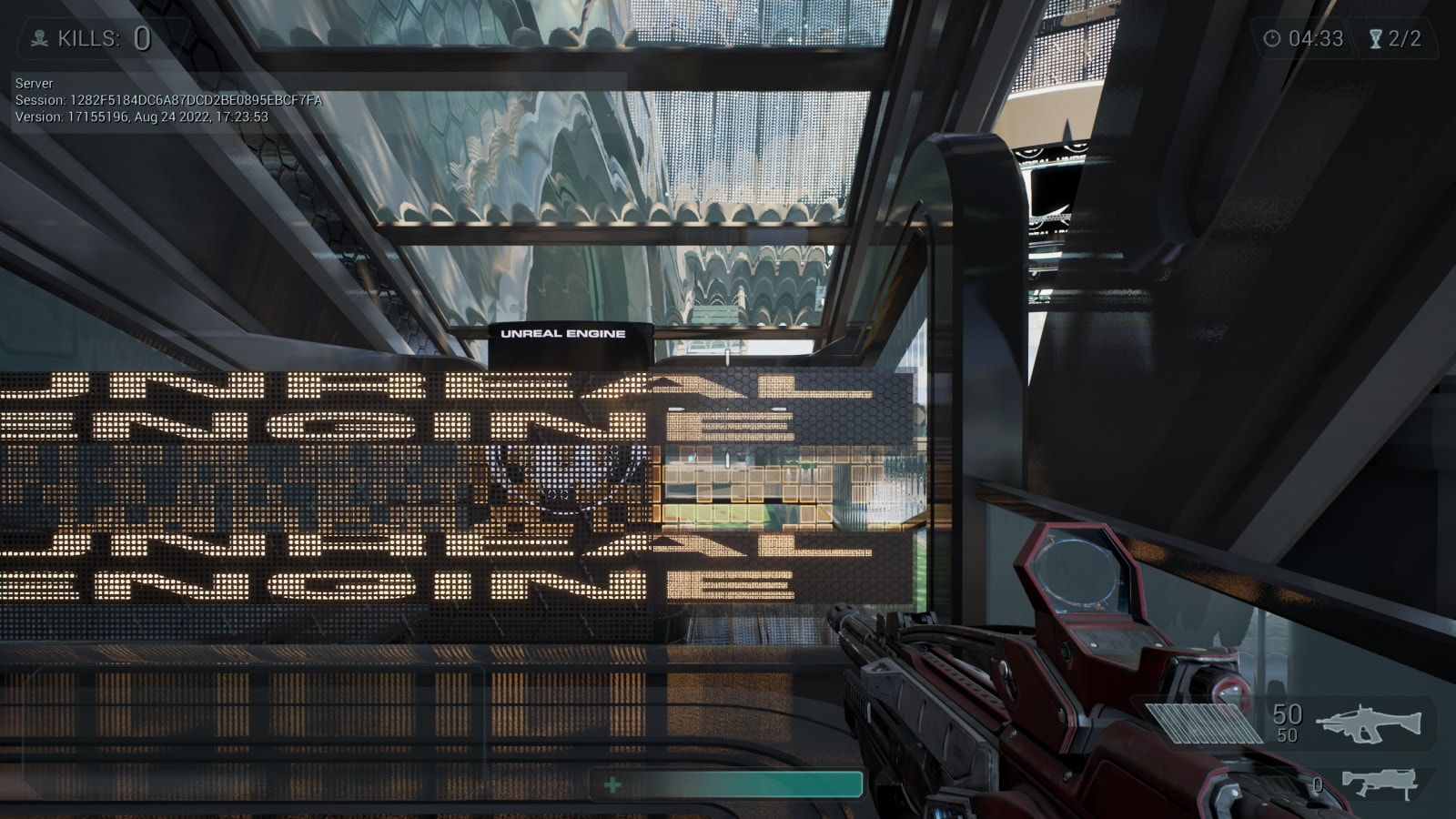

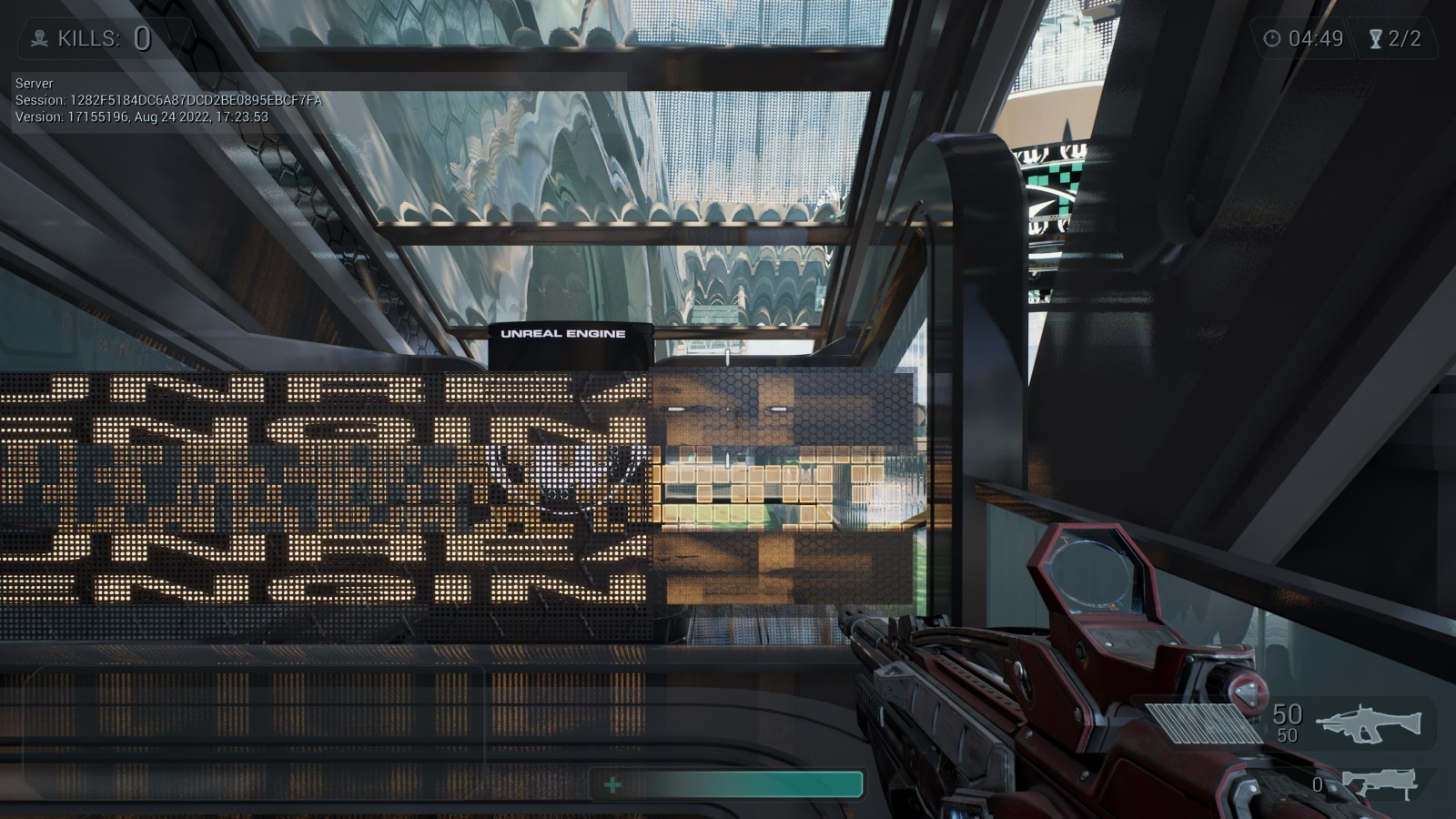

In the screenshot comparisons below using UE 4.27, on the left, “Force value for Reactive Shading Model” is set to 0, and on the right it is set to 1.

UE4.27 FSR 2.1 'Reactive Shading Model' and 'Force value for ShadinForce value for Reactive Shading Model = 0.0g Model' enabled Force value for Reactive Shading Model = 1.0

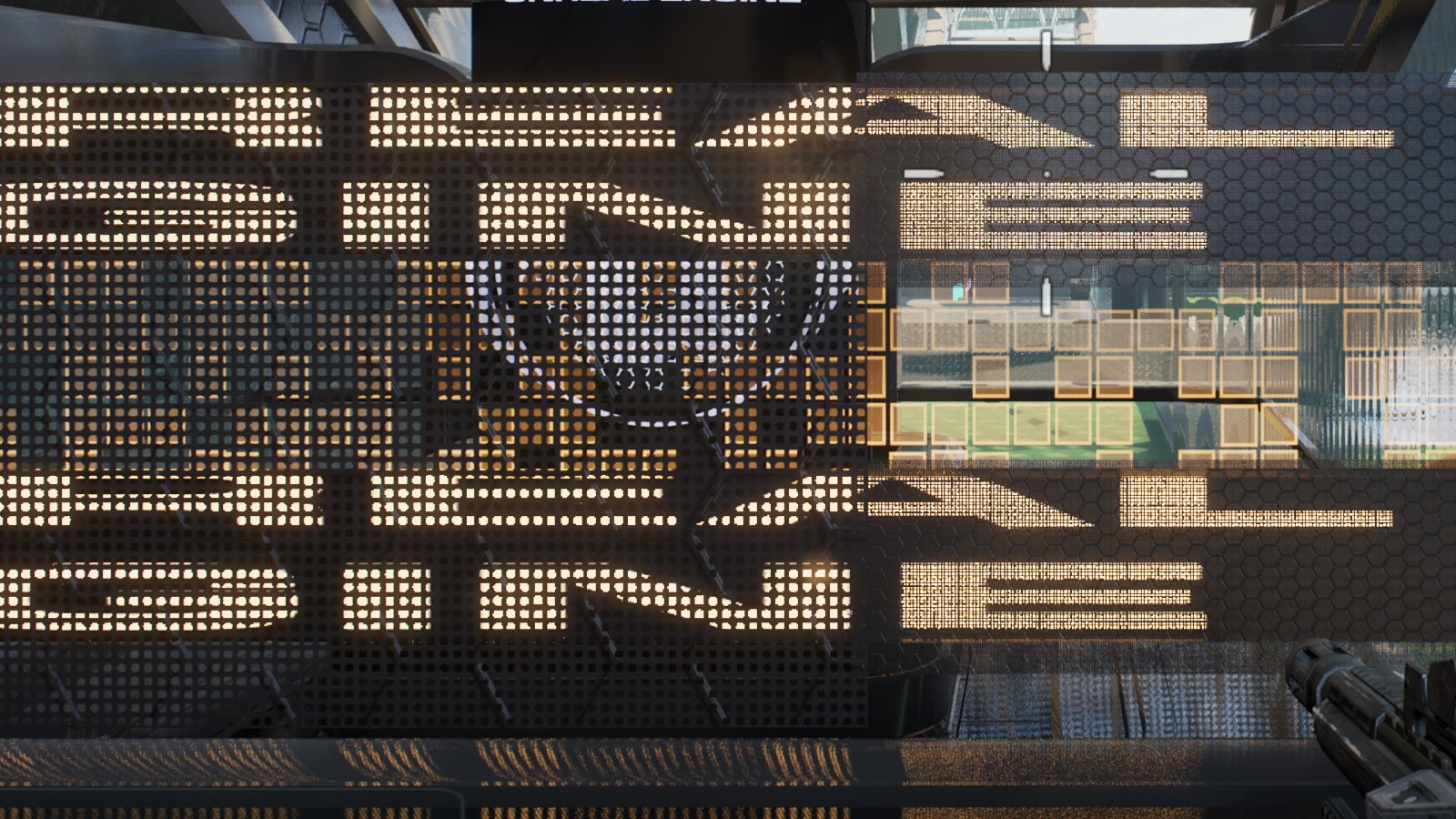

Below: 1:1 pixel comparison of the 4K screenshots above.

UE4.27 FSR 2.1 'Reactive Shading Model' and 'Force value for ShadinForce value for Reactive Shading Model = 0.0g Model' enabled Force value for Reactive Shading Model = 1.0

Coming up next

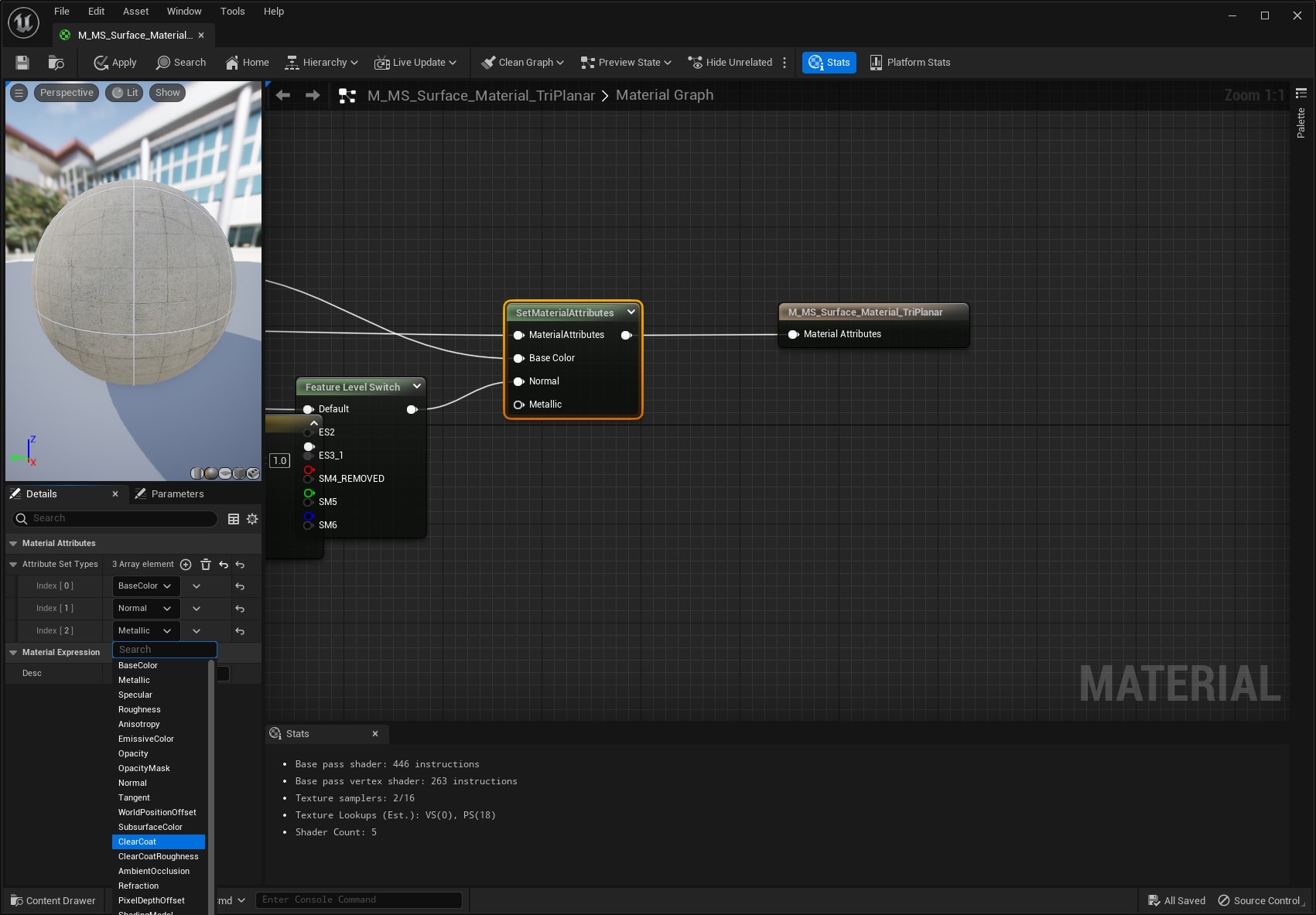

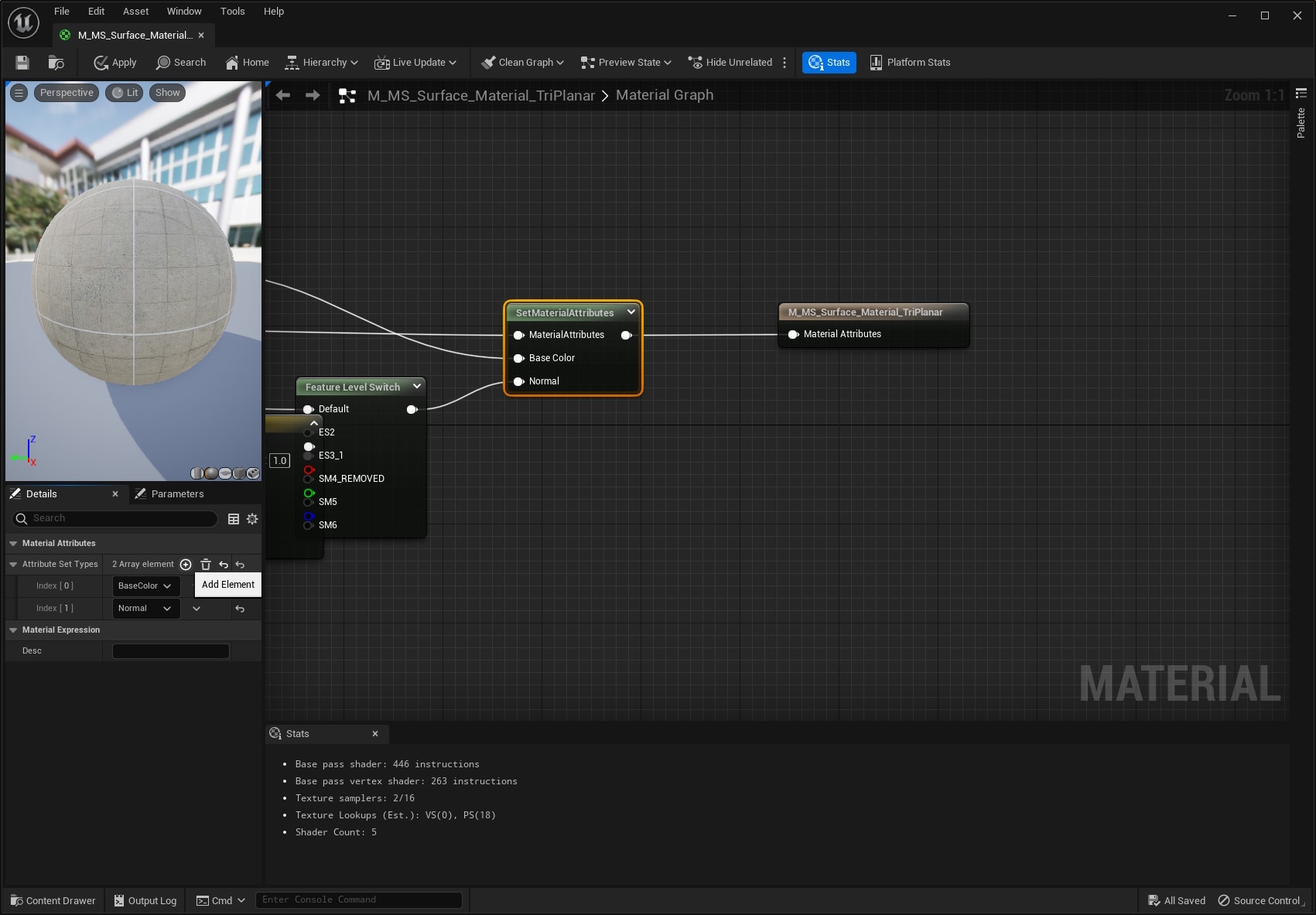

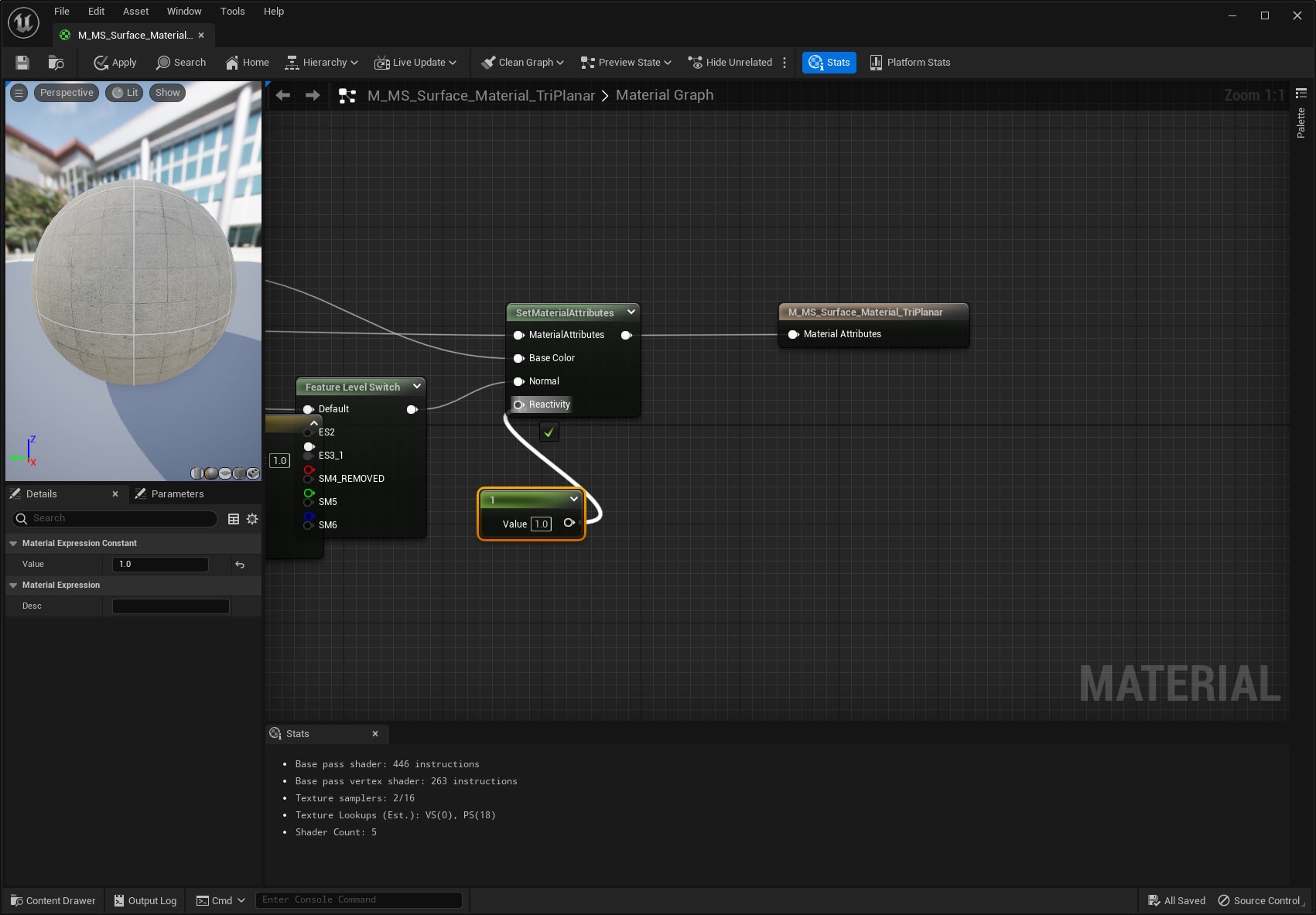

For projects where it is not possible to repurpose a shading model in this fashion there is now an optional engine patch file, LitReactiveShadingModel.patch, provided with the FSR 2 plugin that adds a new Lit Reactive shading model. This new shading model operates identically to Default Lit except that it also allows you to write a value to the CustomData0.x channel which will then be consumed by the CreateReactiveMask pass in the FSR 2 plugin.

We explain how to apply this patch in the final part 5 of this blog series.

Alternatively, feel free to skip ahead to one of the other parts:

Part 1 – Improving foliage appearance: Introduction and using the base pass for velocity generation.

Part 2 – Improving foliage appearance: Improvements via content changes.

Part 3 – Improving foliage appearance: Applying the ImproveStaticWPO patch.

Part 4 – Making materials reactive: How to make a specific shading model write to the reactive mask.

→  Part 5 – Making materials reactive: Applying the LitReactiveShadingModel patch.

Get the Unreal Engine FSR 2 plugins now!

The package linked below contains all three plugins for UE 4.26, UE 4.27, and UE 5.0. [~340MB] and also includes the patches referred to in this blog series.
