The AMD FidelityFX™ SDK 1.0 is now available on GPUOpen

What is the AMD FidelityFX SDK?

The AMD FidelityFX SDK is our new and easy to integrate solution for developers looking to include AMD FidelityFX technologies into their games without any of the hassle of complicated porting procedures. In a nutshell, it is AMD FidelityFX graphics middleware.

Background

In the last few years since we’ve started releasing AMD FidelityFX technologies, we’ve become one of the most used and trusted technology partners in the industry. Our outstanding open-source technology can now be found in over 250 games, made by some of the biggest names in gaming.

As our AMD FidelityFX technologies have grown and become more widely used, we recognized there were many ways we could improve the experience for developers looking to integrate them. The AMD FidelityFX SDK is the result of our aim to bring simplicity, structure, and consistency into all our great AMD FidelityFX technologies.

Of note, the SDK features:

• A consistent standard and style that is much more user-friendly.
• Easier application spawning letting us focus on core algorithm details rather than boilerplate setup code.
• A re-architected graphical framework that is not only more robust and ready, but is also API agnostic, allowing us to develop our effects across intended targets simultaneously.
  • This also doubles as a great how-to in creating a custom backend implementation for developers’ own multi-platform engines.
• Extensive documentation.
• And lastly, we’ve taken a lot of the guesswork out of implementation steps by offering complete pre-built solutions for all of our effects. Most of which can be supported in under 20 lines of code.
  • That being said, if you were a fan of taking the code we put out and manually integrating yourself, you are still free to do that. We’ve taken nothing away. All we’ve done is moved things into a more coherent structure on disk, and cleaned up the code to make it more consistent in style.

Introducing three new AMD FidelityFX technologies

To begin with, we’ve added three more effects to our roster:

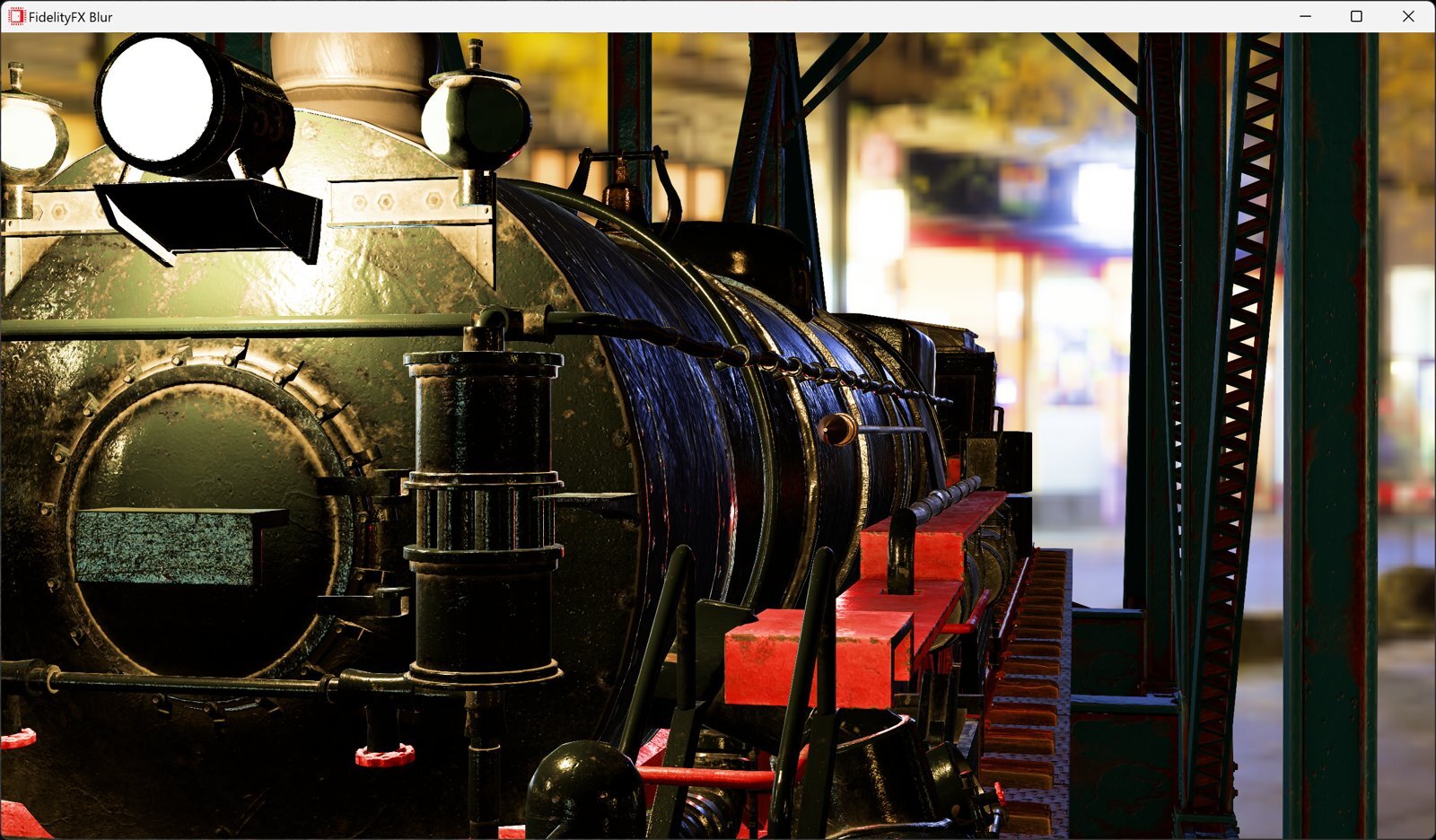

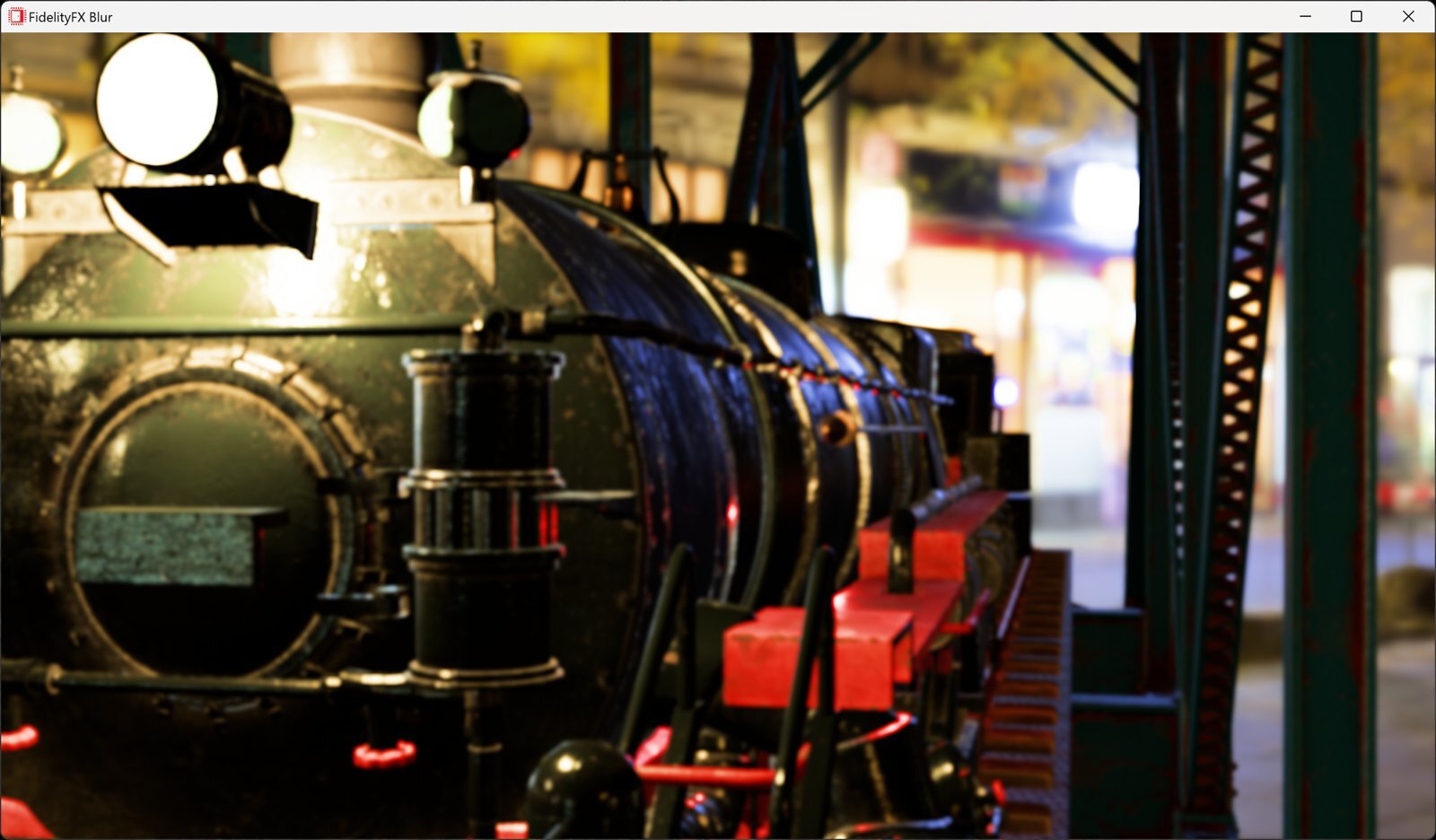

AMD FidelityFX Blur 1.0

AMD FidelityFX Blur is a compute-based, highly-optimized gaussian blur technique implemented in HLSL.

For more information on this brand-new effect check out AMD FidelityFX Blur on GPUOpen.

AMD FidelityFX Depth of Field 1.0

AMD FidelityFX Depth of Field (DoF) is a technique that aims to recreate the bokeh depth of field effect produced by camera lenses.

Check out AMD FidelityFX Depth of Field on GPUOpen for all of the details.

AMD FidelityFX Lens 1.0

AMD FidelityFX Lens is a light-weight shader with lens and film effects. Currently, Lens includes three different effects:

• Chromatic aberration
• Vignette
• Film-grain

The AMD FidelityFX Lens page on GPUOpen contains more information on this brand-new effect.

Our existing AMD FidelityFX technologies

We have also made updates to all our existing AMD FidelityFX technologies, as well as adapting them to become a part of the AMD FidelityFX SDK:

AMD FidelityFX CACAO (aka AMD FidelityFX Ambient Occlusion) 1.3

AMD FidelityFX Combined Adaptive Compute Ambient Occlusion (CACAO) is a highly-optimized implementation of ambient occlusion, which uses intelligent and adaptive sampling techniques to produce excellent quality ambient occlusion at high performance.

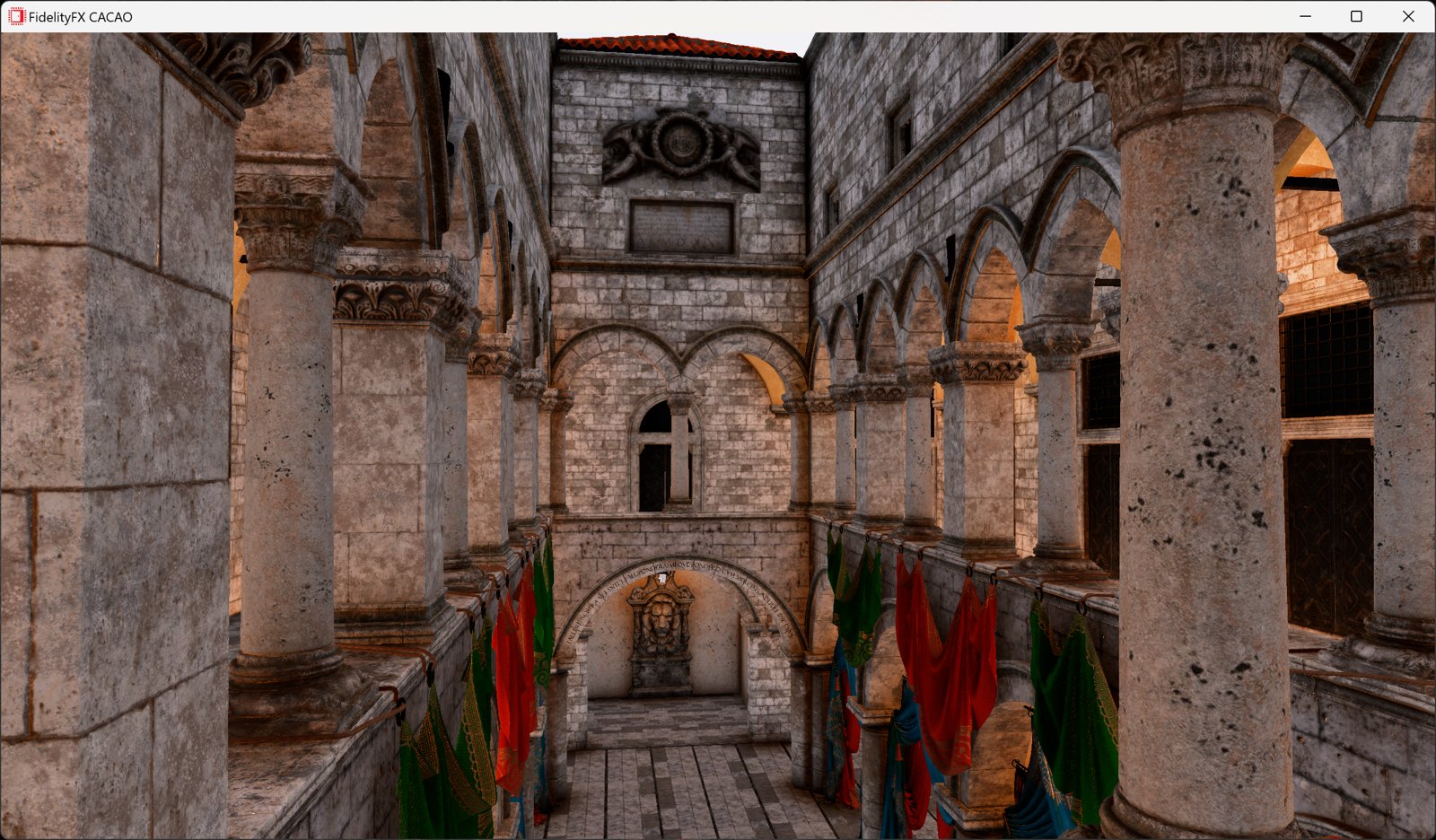

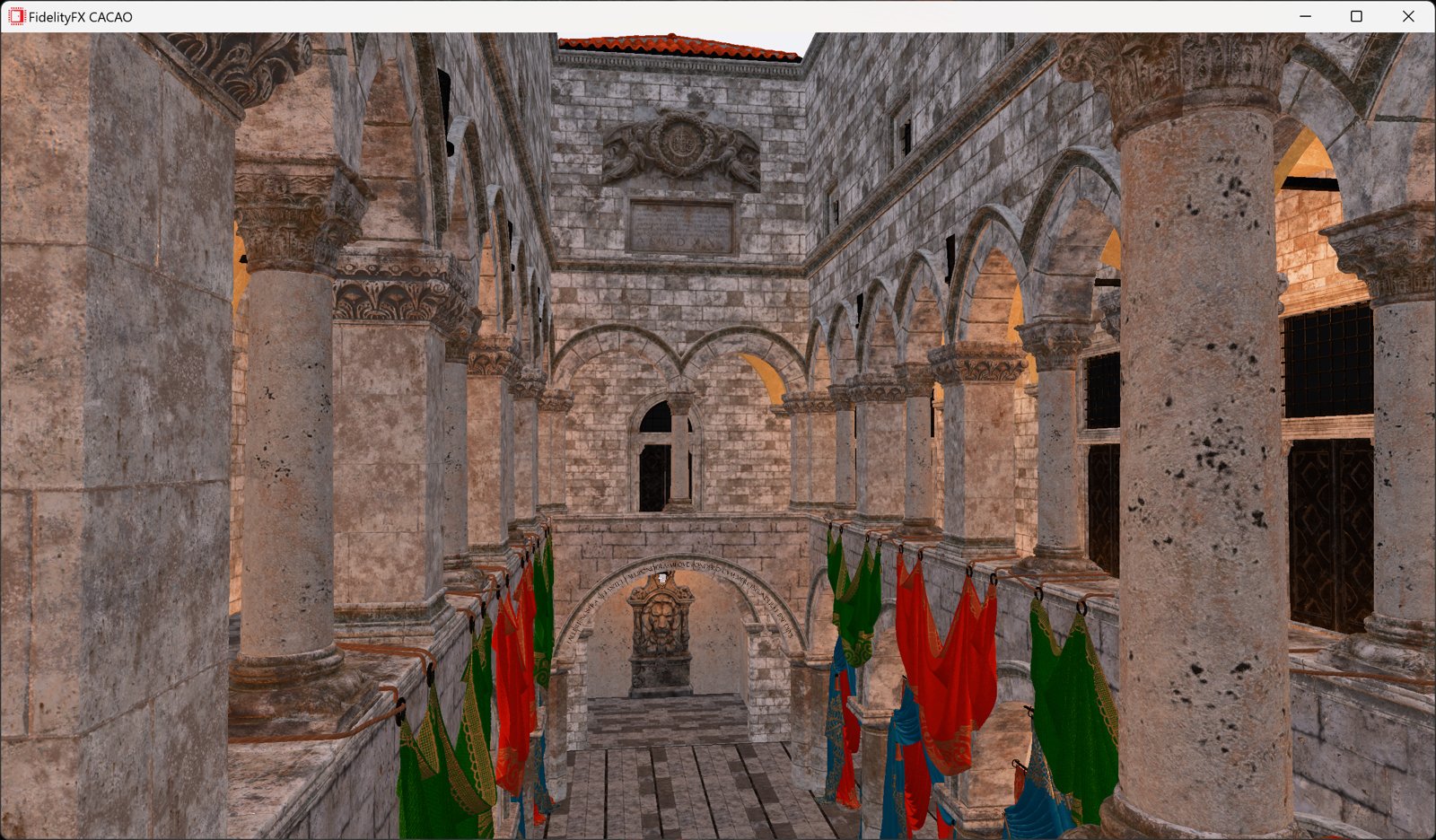

v1.3 introduces the ability to view pure AO versus lit AO results.

The AMD FidelityFX CACAO page on GPUOpen shows some examples of CACAO in action.

AMD FidelityFX CAS 1.1

AMD FidelityFX Contrast Adaptive Sharpening (CAS) is a low overhead adaptive sharpening algorithm with optional up-sampling which was created to provide natural sharpness without artifacts.

v1.1 introduces the option to expose up-sampling options.

Take a look at the AMD FidelityFX CAS page to see all the details.

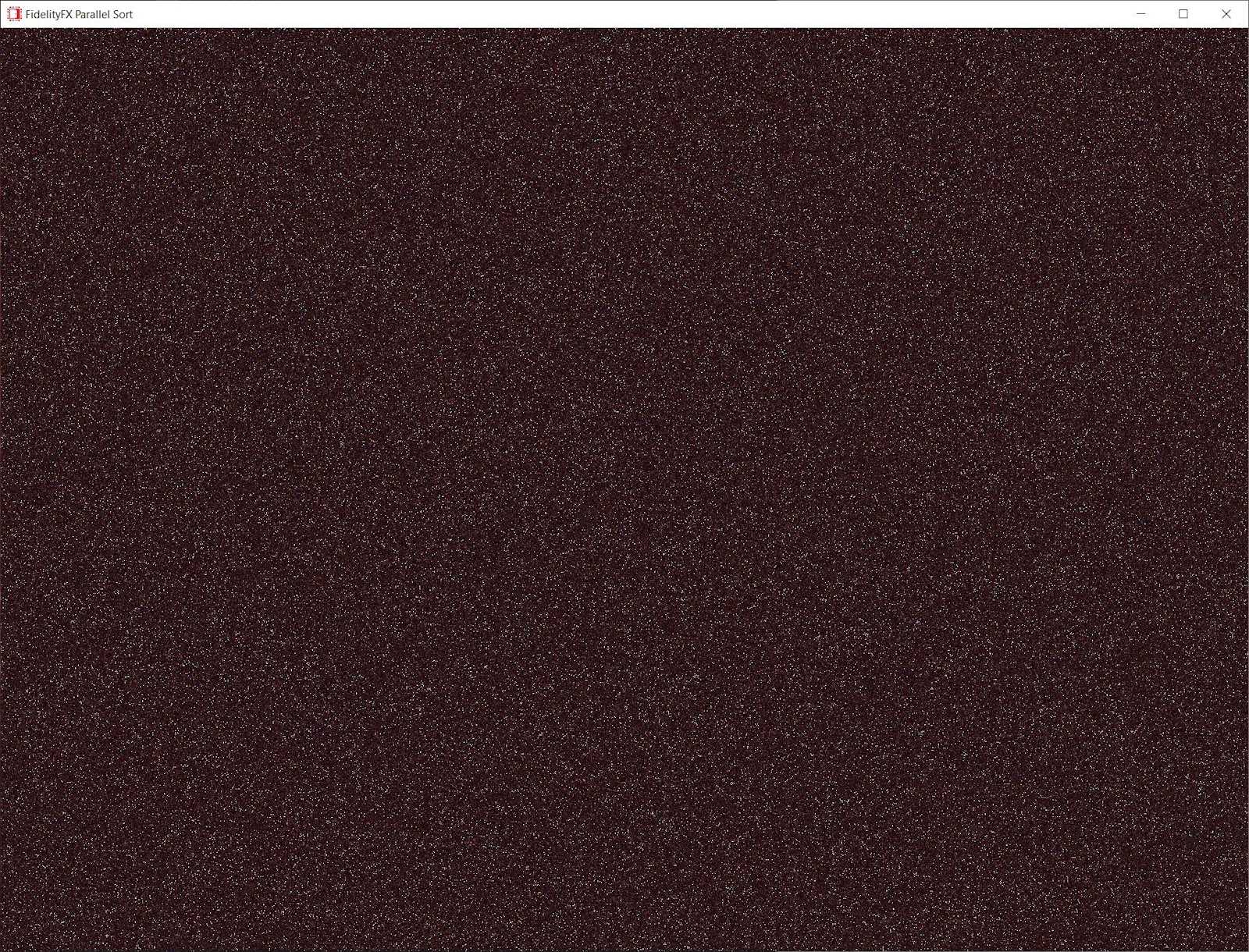

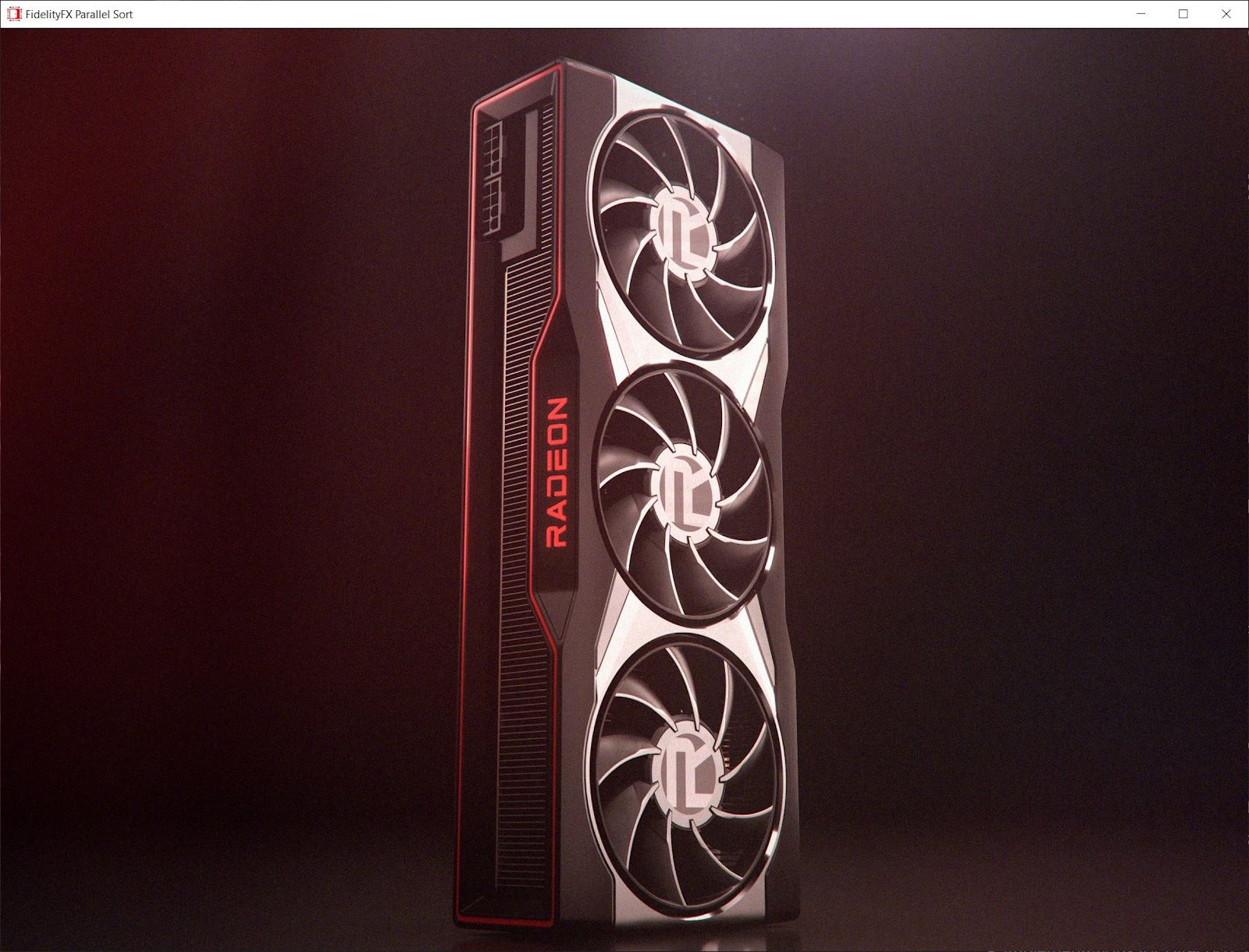

AMD FidelityFX Parallel Sort 1.2

AMD FidelityFX Parallel Sort provides an easy-to-integrate, open-source header implementation of a highly-optimized compute-based radix sort. It is useful for sorting particles or other data sets.

v1.2 has various fixes applied.

For more information and an overview of the algorithmic details head over to the AMD FidelityFX Parallel Sort page.

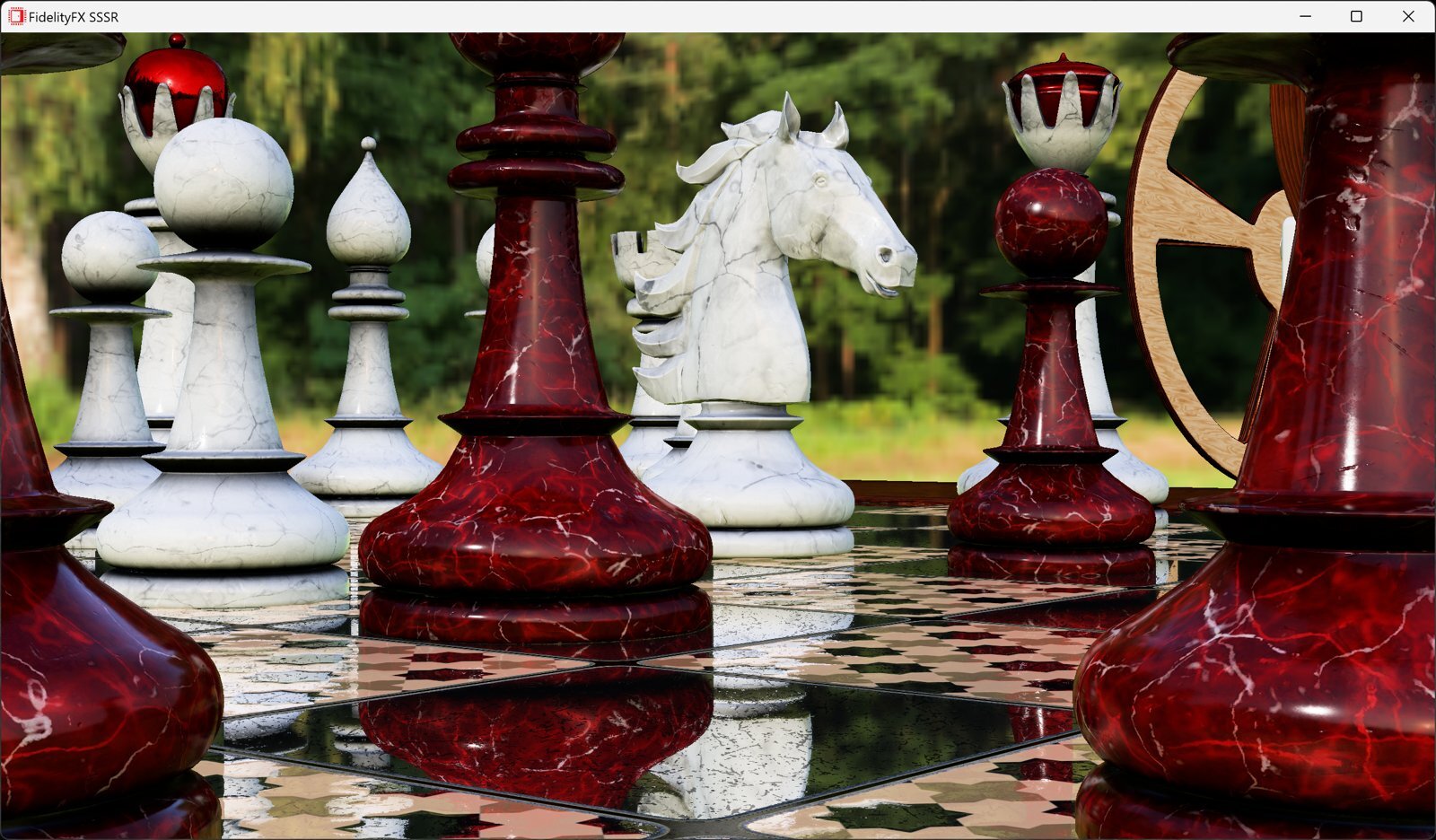

AMD FidelityFX SSSR (aka AMD FidelityFX Screen Space Reflections) 1.4 and AMD FidelityFX Denoiser 1.2

AMD FidelityFX Stochastic Screen Space Reflections (SSSR) is a highly-optimized hierarchical screen space traversal kernel for reflections. This allows you to create high-fidelity reflections in your scene, without costing the earth.

AMD FidelityFX Denoiser provides a set of denoising compute shaders which remove artifacts from reflection and shadow rendering. Useful for both ray-traced or rasterized content. The sample for Denoiser is part of SSSR.

v1.4 (SSSR) and v1.2 (Denoiser) have various bug fixes applied based on past integrations.

For an overview of how AMD FidelityFX SSSR works and some examples of the effect in action, check out the AMD FidelityFX SSSR page here on GPUOpen.

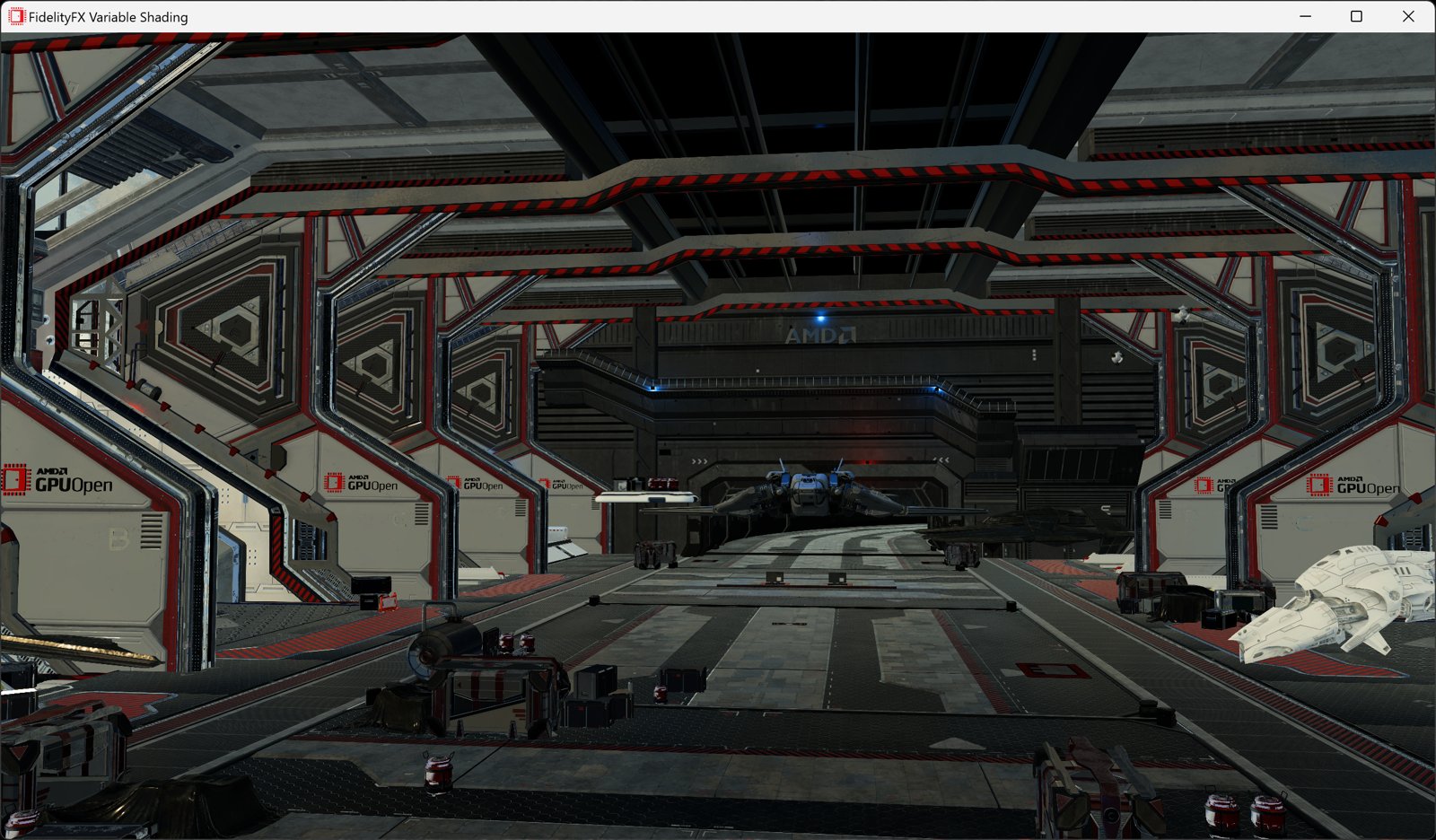

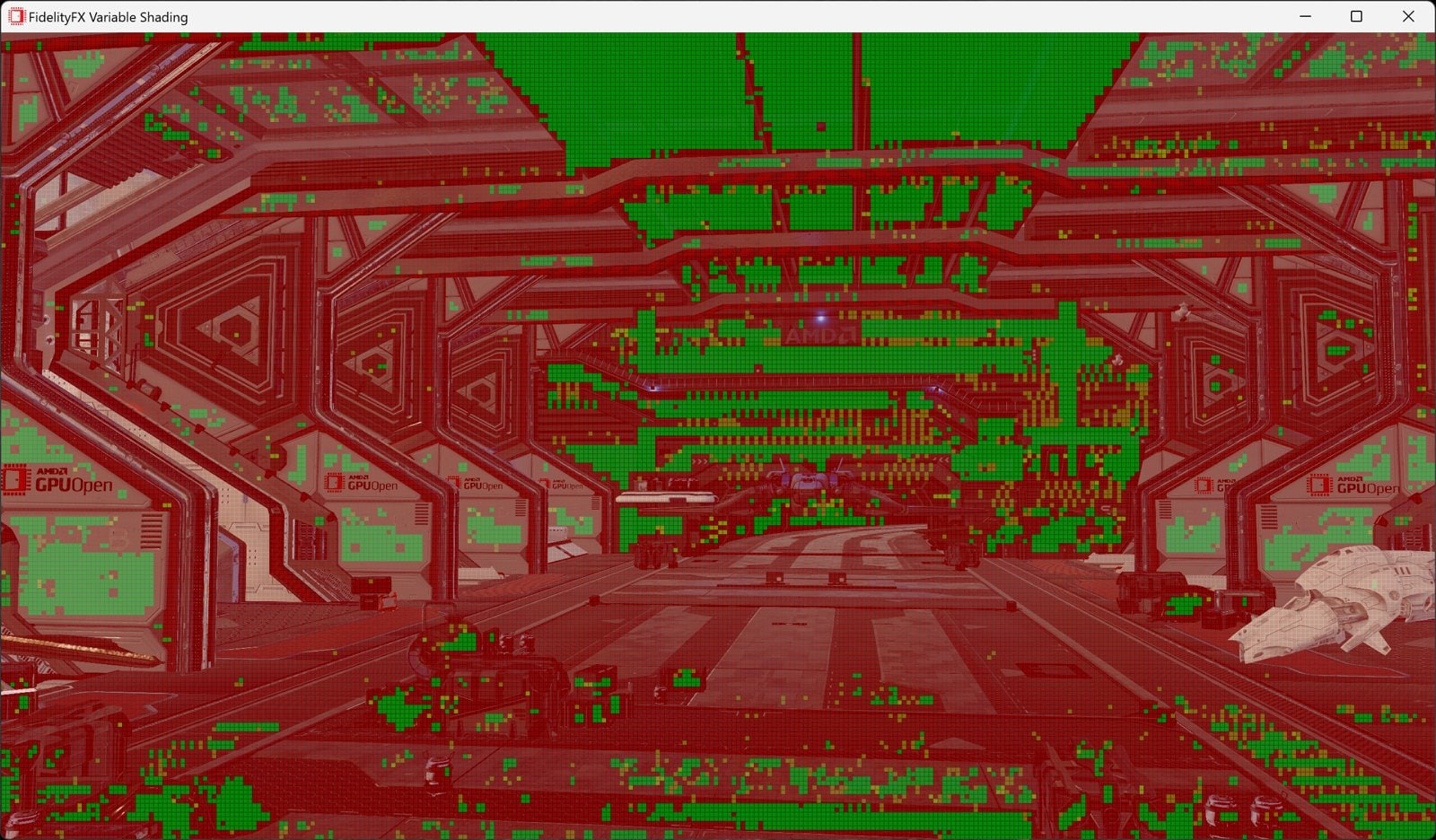

AMD FidelityFX Variable Shading 1.1

AMD FidelityFX Variable Shading (VS) provides an open-source header implementation to easily integrate Variable Rate Shading into your game.

v1.1 has also had various fixes applied.

The AMD FidelityFX Variable Shading page gives you all of the details on this effect.

Our hybrid ray-tracing samples are now a part of the AMD FidelityFX family

Now joining the FidelityFX SDK, our hybrid ray-tracing samples are very useful for demonstrating ways to combine traditional rasterization techniques with ray-tracing to produce fast, high quality results.

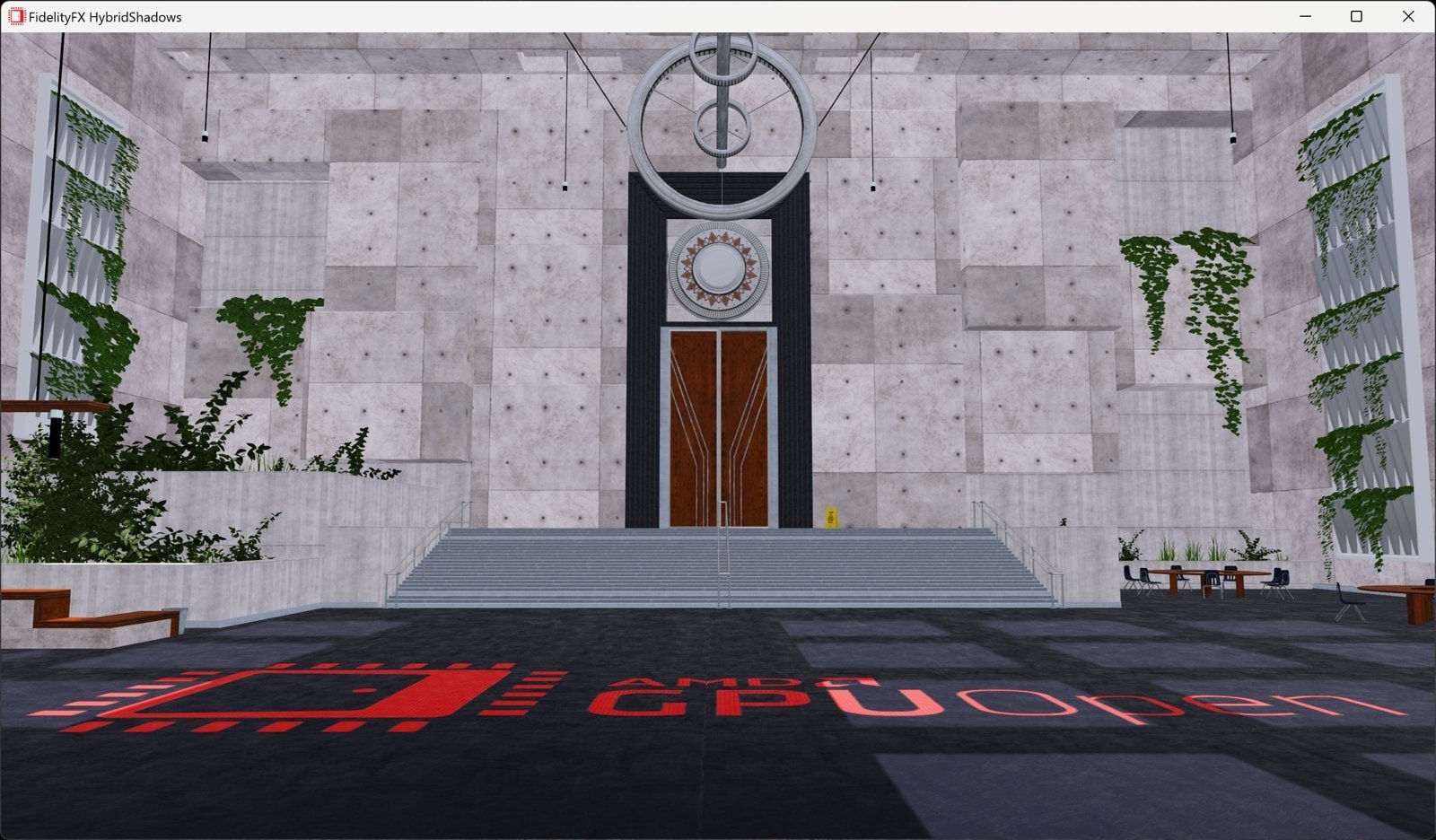

AMD FidelityFX Hybrid Shadows 1.1

The AMD FidelityFX Hybrid Shadows sample shows a way to combine traditional rasterized shadows with ray tracing to create fast high quality soft shadows.

v1.1 introduces Vulkan support.

A collection of comparison images for the AMD FidelityFX Hybrid Shadows sample is shown on the AMD FidelityFX Hybrid Shadows page.

How to use the AMD FidelityFX SDK

Getting up and running with the SDK is quite simple:

1. Download or build the SDK libraries onto your system.
2. Build or link the SDK libraries into your game/application solution.
3. At application startup, query the amount of needed memory the backend will require given the number of feature contexts desired (the following show how to query memory needs of the dx12 backend for SPD and Blur)

   Copied!

   #include <FidelityFX/ffx.h>
   #include <FidelityFX/host/backends/dx12/ffx_dx12.h>

   // Query required memory for FidelityFX backend.
   const size_t scratchBufferSize = ffxGetScratchMemorySizeDX12(FFX_SPD_CONTEXT_COUNT + FFX_BLUR_CONTEXT_COUNT)

4. Allocate the required memory using your own memory allocator, and initialize the SDK backend with said memory.

   Copied!

   // Allocate required backing memory
   void* scratchBuffer = malloc(scratchBufferSize);
   FFX_ASSERT(scratchBuffer);

   // Initialize the FFX SDK backend
   FfxInterface* backendInterface = NULL;
   FfxErrorCode errorCode = ffxGetInterfaceDX12(&backendInterface, dx12Device, scratchBuffer, scratchBufferSize, FFX_SPD_CONTEXT_COUNT + FFX_BLUR_CONTEXT_COUNT);


5. Create the FidelityFX feature contexts

   Copied!

   // FidelityFX SPD information
   FfxSpdContextDescription spdInitParams = {};
   FfxSpdContext            spdContext = {};

   // Setup and create SPD context
   spdInitParams.flags = FFX_SPD_SAMPLER_LINEAR | FFX_SPD_WAVE_INTEROP_WAVE_OPS | FFX_SPD_MATH_PACKED;
   spdInitParams.downsampleFilter = FFX_SPD_DOWNSAMPLE_FILTER_MEAN;
   spdInitParams.backendInterface = backendInterface;
   errorCode = ffxSpdContextCreate(&spdContext, &spdInitParams);
   FFX_ASSERT(errorCode == FFX_OK);

   // FidelityFX BLUR information
   FfxBlurContextDescription 	blurInitParams = {};
   FfxBlurContext 				blurContext = {};

   // Setup and create BLUR context
   blurInitParams.backendInterface = backendInterface;
   blurInitParams.kernelSizes = FFX_BLUR_KERNEL_SIZE_ALL; // allow all kernel sizes
   blurInitParams.floatPrecision = FFX_BLUR_FLOAT_PRECISION_16BIT;
   errorCode = ffxBlurContextCreate(&blurContext, &blurInitParams);
   FFX_ASSERT(errorCode == FFX_OK);


6. Use the FidelityFX feature context at run time

   Copied!

   // Execute FidelityFX SPD
   FfxSpdDispatchDescription spdDispatchParams = {};
   spdDispatchParams.commandList = pCmdList;
   spdDispatchParams.resource    = ffxGetResourceDX12(downsampleResource, L"SPD_Downsample_Resource", FFX_RESOURCE_STATE_PIXEL_COMPUTE_READ, FFX_RESOURCE_USAGE_ARRAYVIEW);

   FfxErrorCode errorCode = ffxSpdContextDispatch(&spdContext, &spdDispatchParams);
   FFX_ASSERT(errorCode == FFX_OK);

   // Execute FidelityFX BLUR
   FfxBlurDispatchDescription blurDispatchParams = {};
   blurDispatchParams.commandList 	= pCmdList;
   blurDispatchParams.kernelSize 	= FFX_BLUR_KERNEL_SIZE_13x13;
   blurDispatchParams.inputAndOutputSize.width 	= AppGetWidth();
   blurDispatchParams.inputAndOutputSize.height 	= AppGetHeight();
   blurDispatchParams.input = ffxGetResourceDX12(inputResource, L"MyBlurInput", FFX_RESOURCE_STATE_PIXEL_COMPUTE_READ);
   blurDispatchParams.output = ffxGetResourceDX12(outputResource, L"MyBlurOutput", FFX_RESOURCE_STATE_UNORDERED_ACCESS);

   errorCode = ffxBlurContextDispatch(&blurContext, &blurDispatchParams);
   FFX_ASSERT(errorCode == FFX_OK);


7. Release memory when done

   Copied!

   // Flush the GPU before releasing contexts/backends!
   GPUFlush();

   // Destroy FidelityFX SPD
   ffxSpdContextDestroy(&spdContext);

   // Destroy FidelityFX BLUR
   ffxBlurContextDestroy(&blurContext);

   // Destroy FidelityFX SDK backend
   free(backendInterface.scratchBuffer);


Try it out!

Full source code and binaries are now available on GitHub under MIT license.

Don’t forget to check out our extensive AMD FidelityFX SDK documentation.

And of course, make sure you visit our brand new AMD FidelityFX SDK home page here on GPUOpen!

Help contribute to the SDK!

Do you have feature requests or found issues with the SDK? Please get in touch with your AMD representative, or reach out to us with @GPUOpen on Twitter or @GPUOpen@mastodon.gamedev.place.

All requests and feedback are very valuable to us, and we will read and try to respond to everyone.

Here’s a list of all our AMD FidelityFX technologies

AMD FidelityFX Blur

AMD FidelityFX Blur is an AMD RDNA™ architecture optimized collection of blur kernels from 3×3 up to 21×21.

AMD FidelityFX Combined Adaptive Compute Ambient Occlusion (CACAO)

AMD FidelityFX Combined Adaptive Compute Ambient Occlusion (CACAO) is an AMD RDNA™ architecture optimized implementation of ambient occlusion.

AMD FidelityFX Contrast Adaptive Sharpening (CAS)

AMD FidelityFX Contrast Adaptive Sharpening (CAS) provides a mixed ability to sharpen and optionally scale an image.

AMD FidelityFX Denoiser

AMD FidelityFX Denoiser is a set of denoising compute shaders which remove artefacts from reflection and shadow rendering.

AMD FidelityFX Depth of Field (DoF)

AMD FidelityFX Depth of Field is an AMD RDNA™-architecture optimized implementation of physically correct camera-based depth of field.

AMD FidelityFX Hybrid Shadows sample

This sample demonstrates how to combine ray traced shadows and rasterized shadow maps together to achieve high quality and performance.

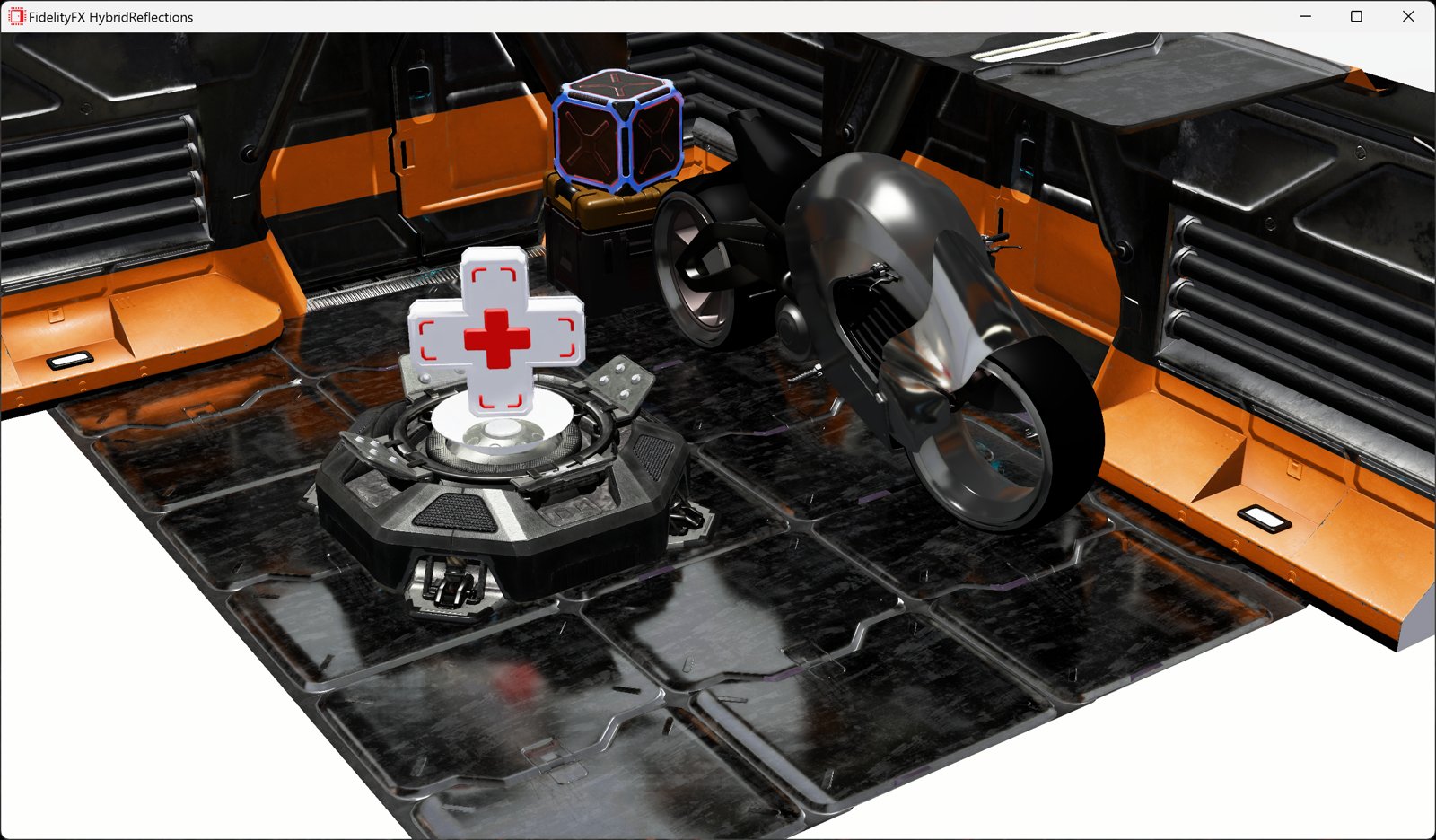

AMD FidelityFX Hybrid Stochastic Reflections sample

This sample shows how to combine AMD FidelityFX Stochastic Screen Space Reflections (SSSR) with ray tracing in order to create high quality reflections.

AMD FidelityFX Lens

AMD FidelityFX Lens is an AMD RDNA™ architecture optimized implementation of some of gaming’s most used post-processing effects.

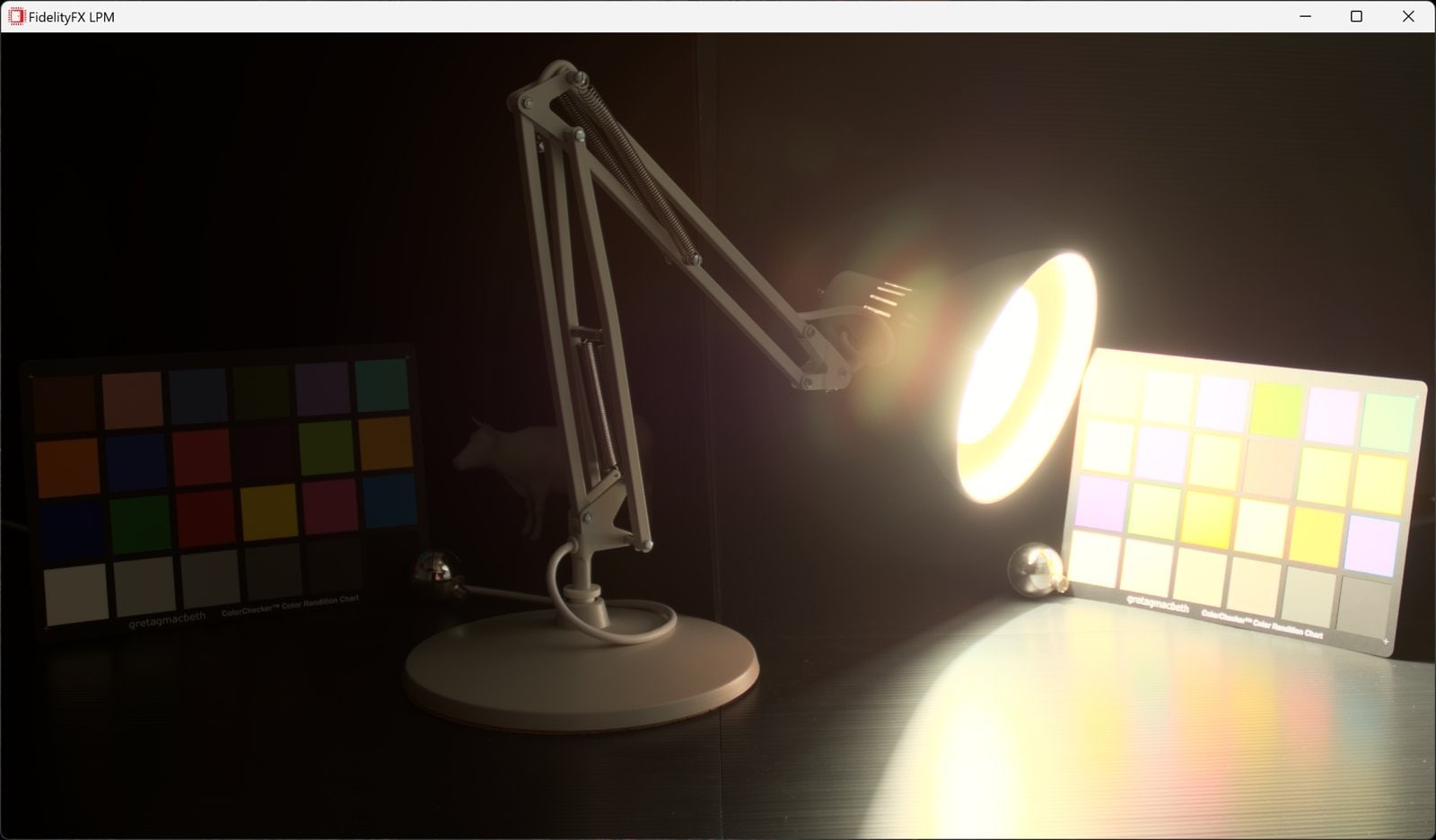

AMD FidelityFX Luminance Preserving Mapper (HDR Mapper)

AMD FidelityFX LPM provides an open-source library to easily integrate HDR and wide gamut tone and gamut mapping into your game.

AMD FidelityFX Parallel Sort

AMD FidelityFX Parallel Sort makes sorting data on the GPU quicker, and easier. Use our SM6.0 compute shaders to get your data in order.

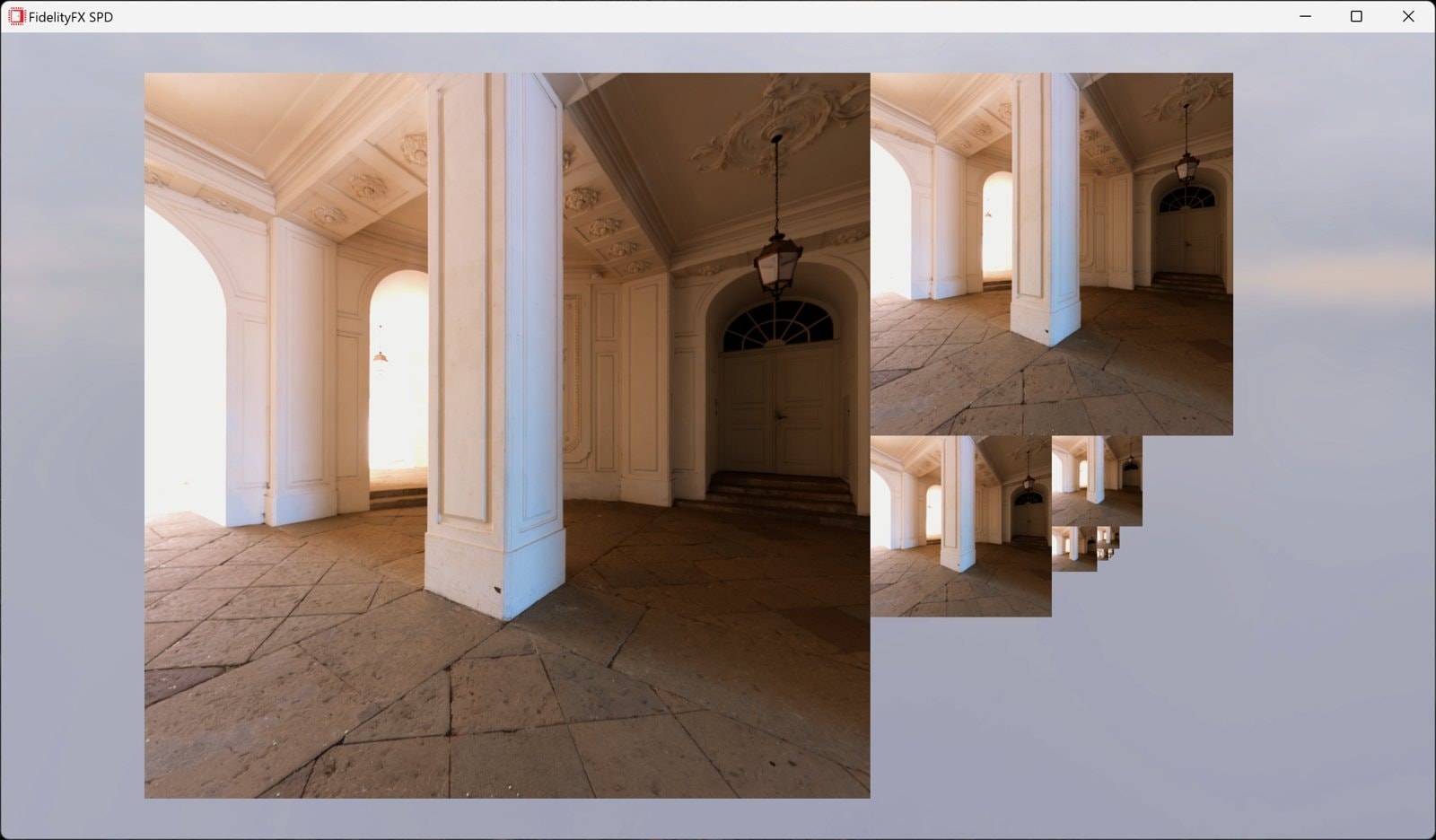

AMD FidelityFX Single Pass Downsampler (SPD)

AMD FidelityFX Single Pass Downsampler (SPD) provides an AMD RDNA™ architecture optimized solution for generating up to 12 MIP levels of a texture.

AMD FidelityFX Stochastic Screen Space Reflections (SSSR)

The AMD FidelityFX SSSR effect provides an open-source library to easily integrate stochastic screen space reflections into your game.

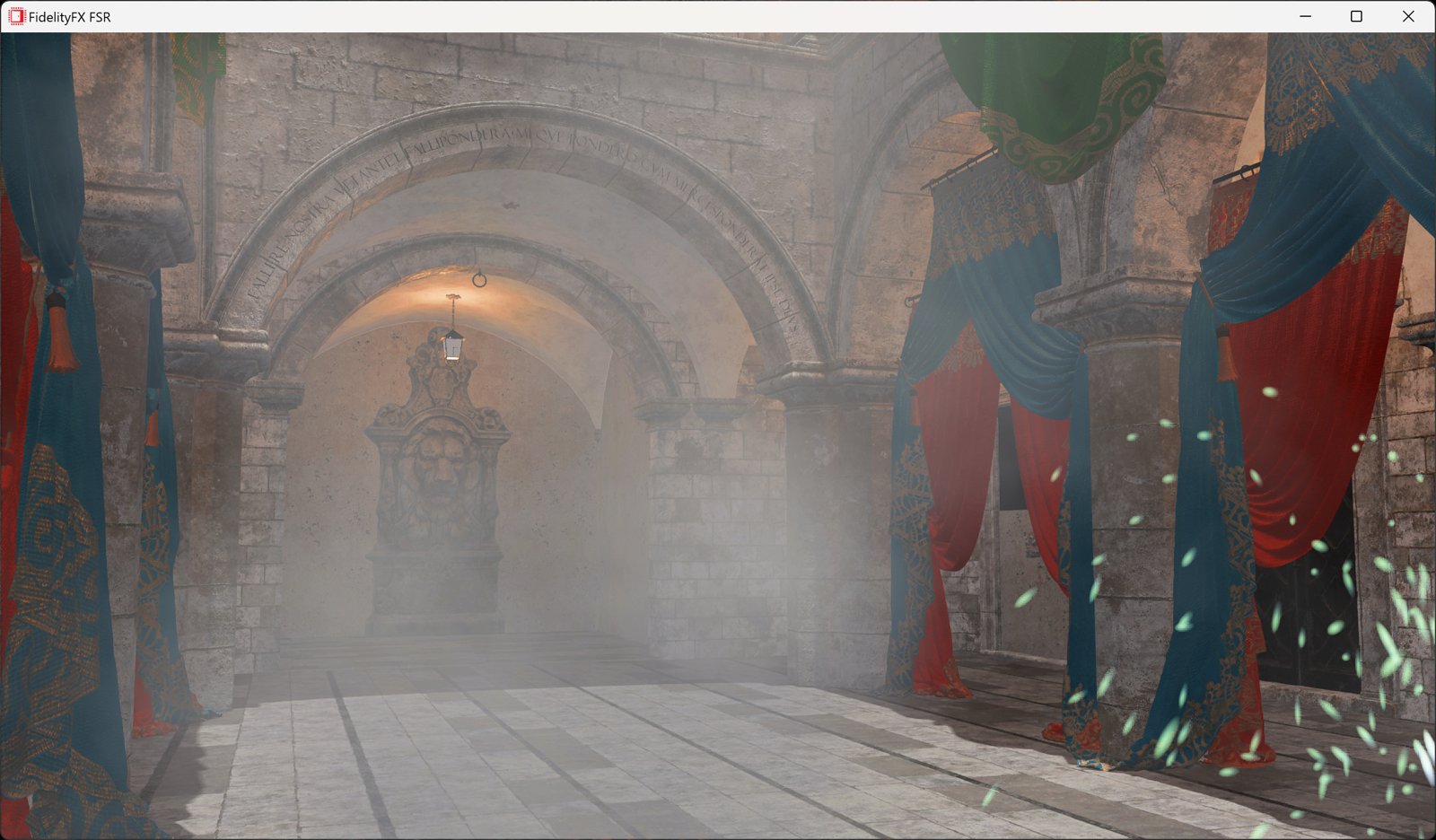

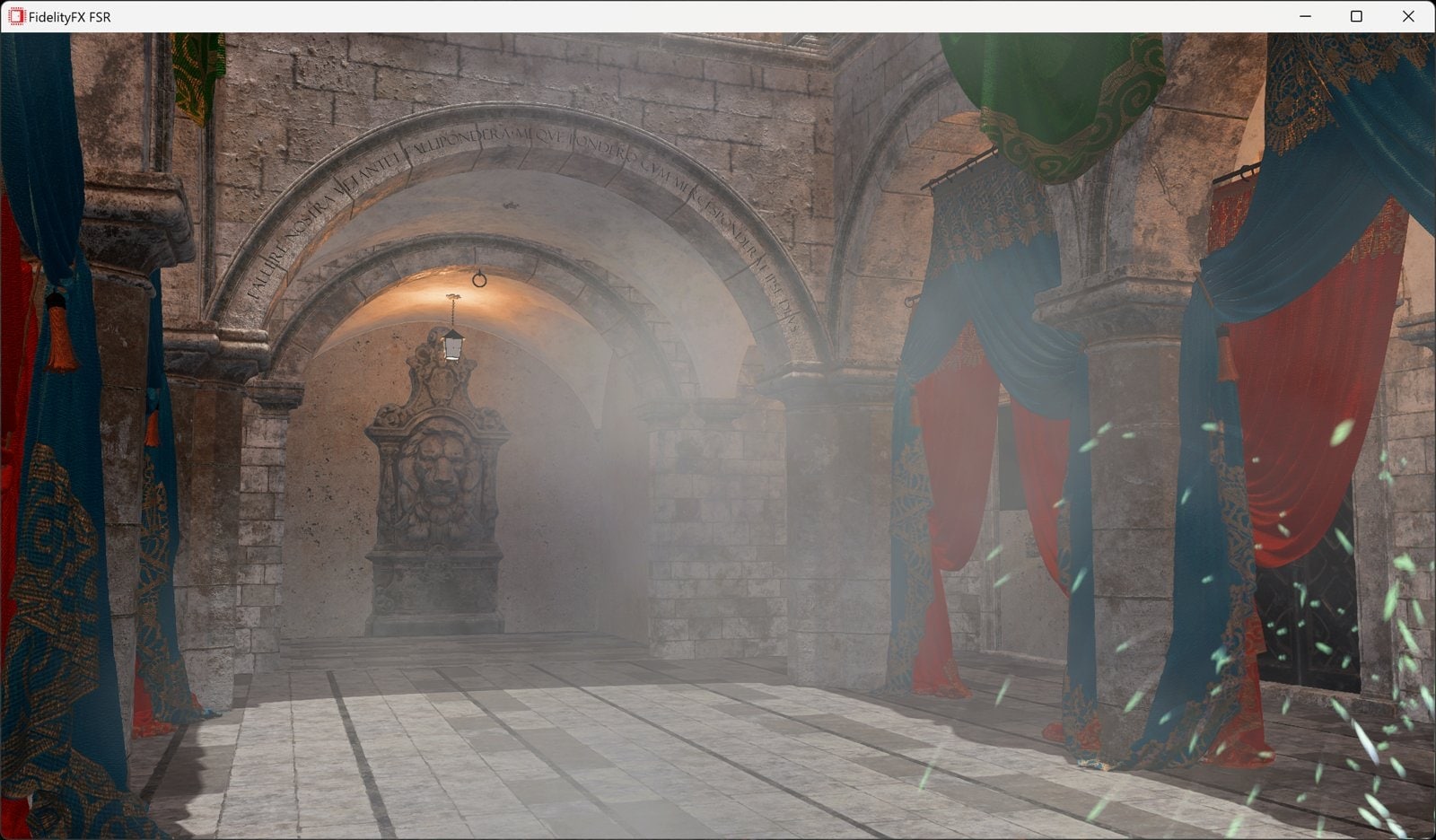

AMD FidelityFX Super Resolution 1 (FSR 1)

AMD FidelityFX Super Resolution (FSR) is our open-source, high-quality, high-performance upscaling solution.

AMD FidelityFX Super Resolution 2 (FSR 2)

Learn even more about our new open-source temporal upscaling solution FSR 2, and get the source code and documentation!

AMD FidelityFX Variable Shading

AMD FidelityFX Variable Shading drives Variable Rate Shading into your game.

Radeon™ Cauldron Framework

Radeon Cauldron is our open-source experimentation framework for DirectX®12 and Vulkan®, provided in the AMD FidelityFX SDK.
