Compressonator v2.3 release delivers ASTC, ETC2 codec support and GPU rendered image views

Compressonator is a set of tools to allow artists and developers to more easily create compressed texture image assets and easily visualize the quality impact of various compression technologies.  It consists of a GUI application, a command line application and an SDK for easy integration into a developer tool chain.


Adaptive Scalar Texture Compression support has been added to the Compressonator SDK, GUI and Command Line. The market share of hardware that supports ASTC is picking up, in the event that it is not available on specific hardware, users can use CPU based views which are available on all hardware platforms.

ASTC compression is set by varying texture Block Sizes (4×4 to 12×12 Texel’s) or Bit Rate (8.0 to 0.89 bits per Texel), both selections are interchangeable and achieve the same result.

The GUI screenshot below demonstrates how users can select texture compression using ether Bit Rate or Block Size formats through a single (Bitrate) setting.

Compressonator_2.3_1a Compressonator_2.3_1b

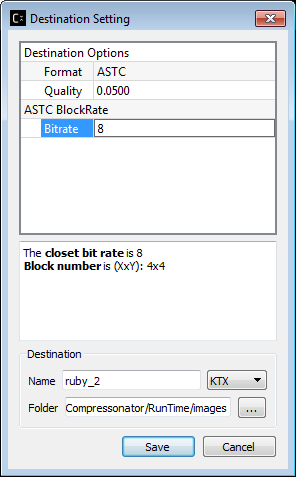

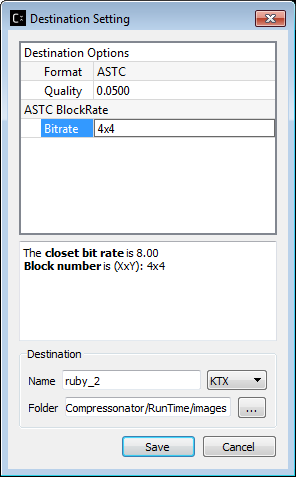

Figure 1: Compressonator Destination Setting with ASTC option

The addition of variable size buffers in the SDK paves the way for support of enhanced compression codecs and new innovative compression techniques in future releases.

New ETC2

RGB texture compression based on an updated version of Ericsson Texture Compression has been added to the Compressonator SDK, GUI and Command Line. This new format augments the support for consoles and mobile devices. The ETC2 format is based on GL_COMPRESSED_RGB8_ETC2 API.

ETC2 codec provides backward compatibility with ETC1. Alpha and SRGB based ETC2 support will be supplied in future releases.

New GPU Rendered Texture Views

In addition to viewing texture images via CPU, Compressonator v2.3 now support viewing via GPU. This feature allows the tool users to visualize the results as the compressed images would be adapted in their application.  The current release supports GPU rendering through OpenGL and DirectX 11. Future releases will add support for Vulkan.

A new library has been added to the SDK which has a single API interface that handles multiple texture viewing choices (OpenGL, DirectX 11 or host CPU).  The GUI also allows users to switch easily between view choices.

Compressonator_2.3_2a Compressonator_2.3_2b

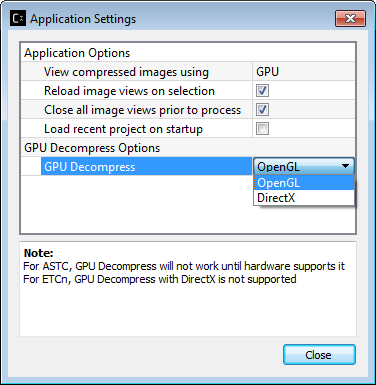

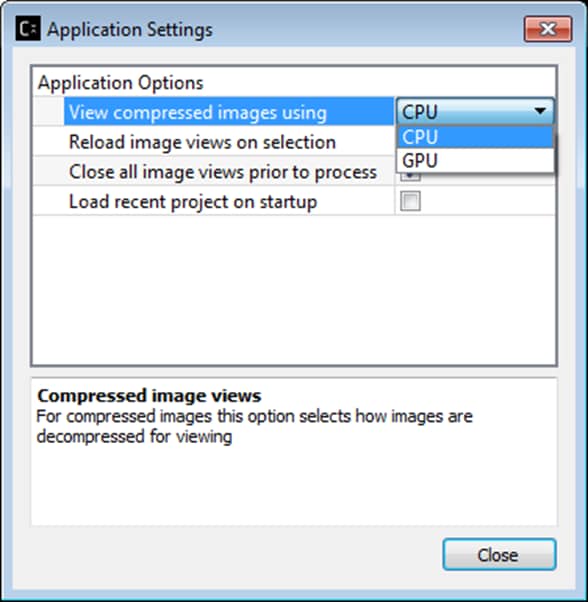

Figure 2: Compressonator GUI application settings dialog showing how easy it is to switch GPU views

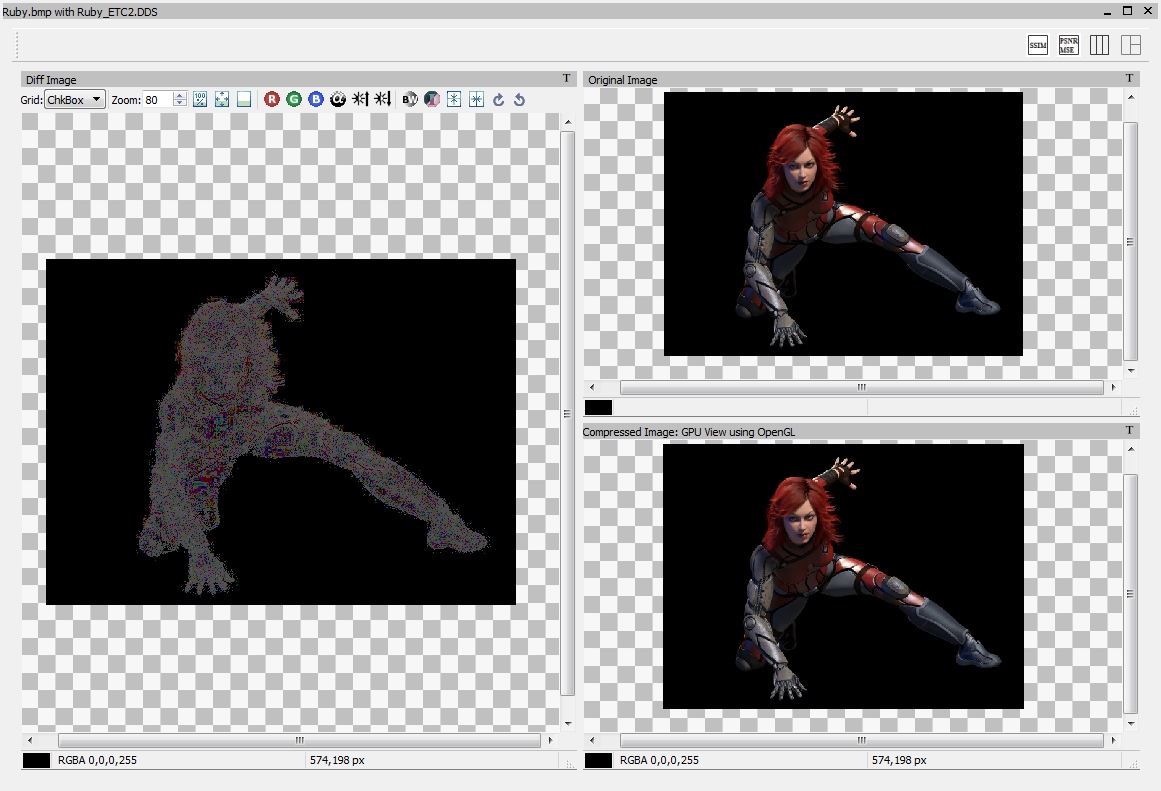

Figure 3: Compressonator image difference view using OpenGL

Download and Support

Thank you for your ongoing support, and we hope you find the features for Compressonator Tools of interest.

Head over to the source page to check it out.

Let us know what you think in the comments section below. We look forward to your feedback.

Rosanna Ashworth-Jones

Rosanna Ashworth-Jones

Rosanna Ashworth-Jones is the GPUOpen Site Admin and Developer Engagement Manager, and a part of the European Game Engineering team. Links to third party sites, and references to third party trademarks, are provided for convenience and illustrative purposes only. Unless explicitly stated, AMD is not responsible for the contents of such links, and no third party endorsement of AMD or any of its products is implied.
