FidelityFX Classifier 1.3

AMD FidelityFX Classifier includes specialized tile classifiers optimized for specific workloads:

Shadow classifier – Designed to classify pixels that need ray tracing to determine shadow information
Reflection classifier – Designed to classify hybrid pixels and hardware raytracing pixels based on surface roughness.

AMD FidelityFX Shadow Classifier

Introduction

The FidelityFX Shadow Classifier is designed to help accelerate the generation of raytraced shadows. It works by analyzing the scene and dividing the screen into 8×4 tiles that represent pixel-level requirements for ray tracing. The returned list of tiles represents all the tiles which contain at least one pixel that needs ray tracing applied.

Shading language requirements

The tile position is encoded using explicit fp16 types.

HLSL GLSL CS_6_2

Inputs

This section describes the inputs to FidelityFX Shadow Classifier.

Input name	Type	Notes
depth	`2D Texture`	The depth buffer for the current frame.
normal	`2D Texture`	The normal buffer for the current frame.
shadowMaps	`Array of 2D Textures`	The shadow cascades for the current frame.
workQueue	`Buffer`	The tile list returned by the classifier.
workQueueCount	`Buffer`	The atomic counter containing the number of tiles returned for this frame.
rayHitMask	`2D Texture`	The results of the shadow map blocker search.

Moreover, it is possible to initialize the classifier context with a classification mode. The two options available are:

ClassifyByNormals – Classifies tiles based on the normal texture only.
ClassifyByCascades – Classifies tiles using both normal texture and shadow map cascades.

The technique

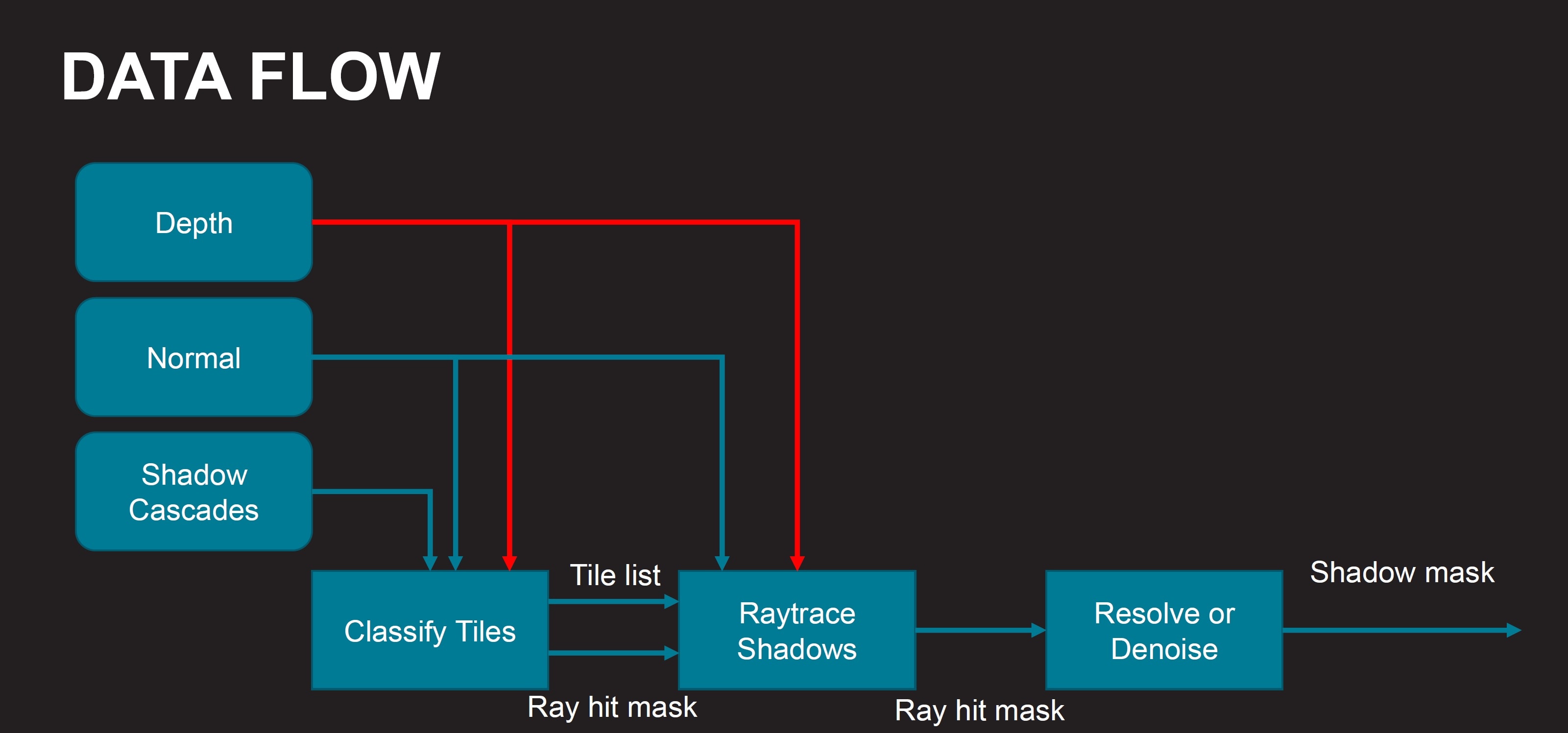

The following diagram shows the input resources needed by the tile classifier and how its results can be used in a subsequent “RayTrace Shadows” pass. For more information on an effect which uses this structure, you can refer Hybrid Shadows .

Data flow

Classifier Inputs:

Depth buffer
- Used to reconstruct world position.
- Used to reject sky pixels.
Normal buffer
- Used to reject pixels that don’t face the sun.
Cascade shadow maps
- Used to reject pixels that don’t need raytracing.

Classifier Outputs:

Tile list
- List of all 8×4 tiles that need to ray trace.
- Each tile has a mask of which pixels in the tile need raytracing.
- Each tile also has min and max ray length.
Ray hit mask
- uint mask for each 8×4 tile.
- Preloaded with results of the cascaded shadow map blocker search.

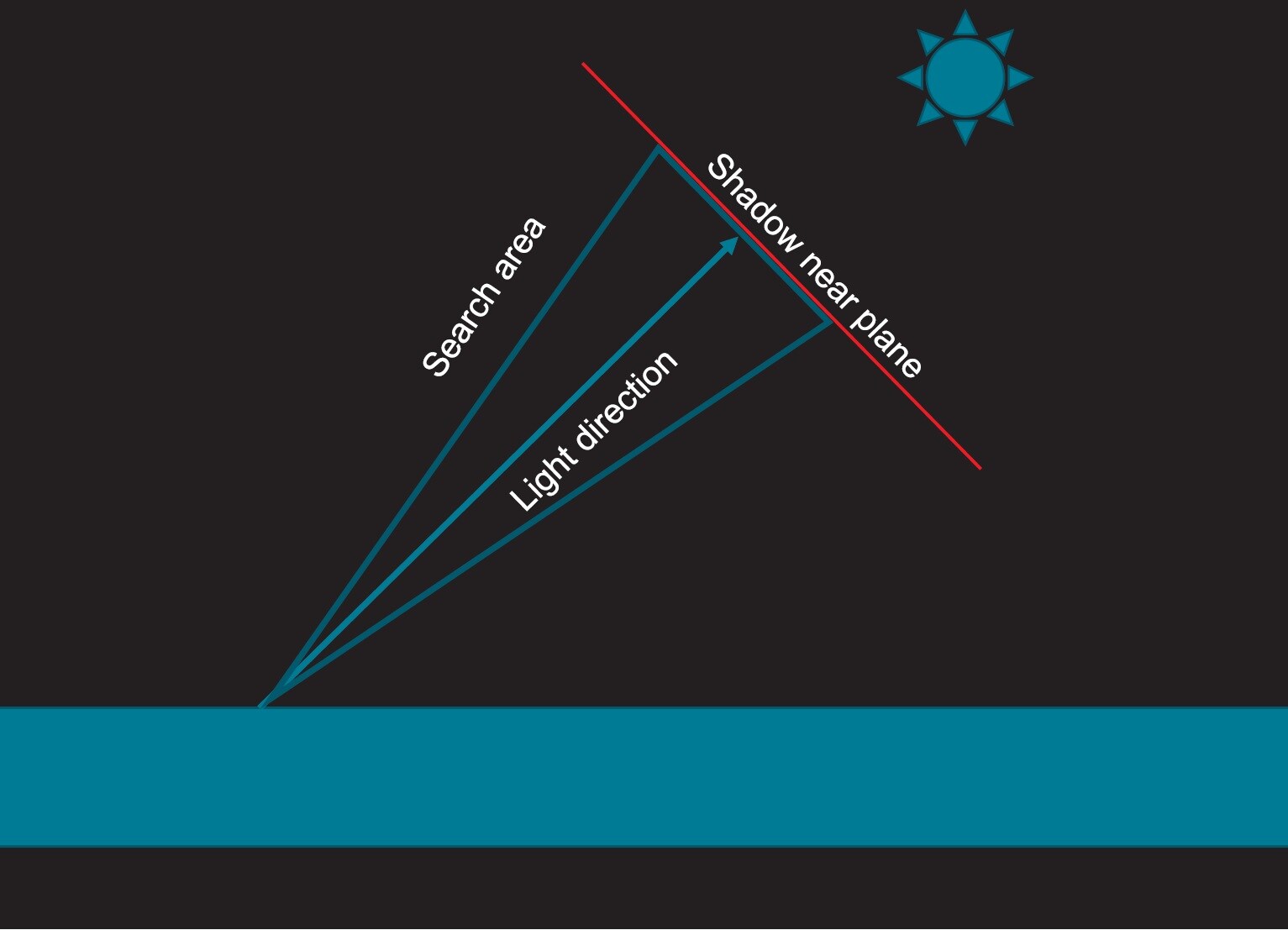

Blocker search

When classifying tiles using shadow map cascades, a crucial step is to check whether there are any blockers between the current pixel and the shadow near plane. To do this we use the light space depth to scale the sun size to the shadow map’s near plane and subsequently use Poisson disc distribution to uniformely sample the search area.

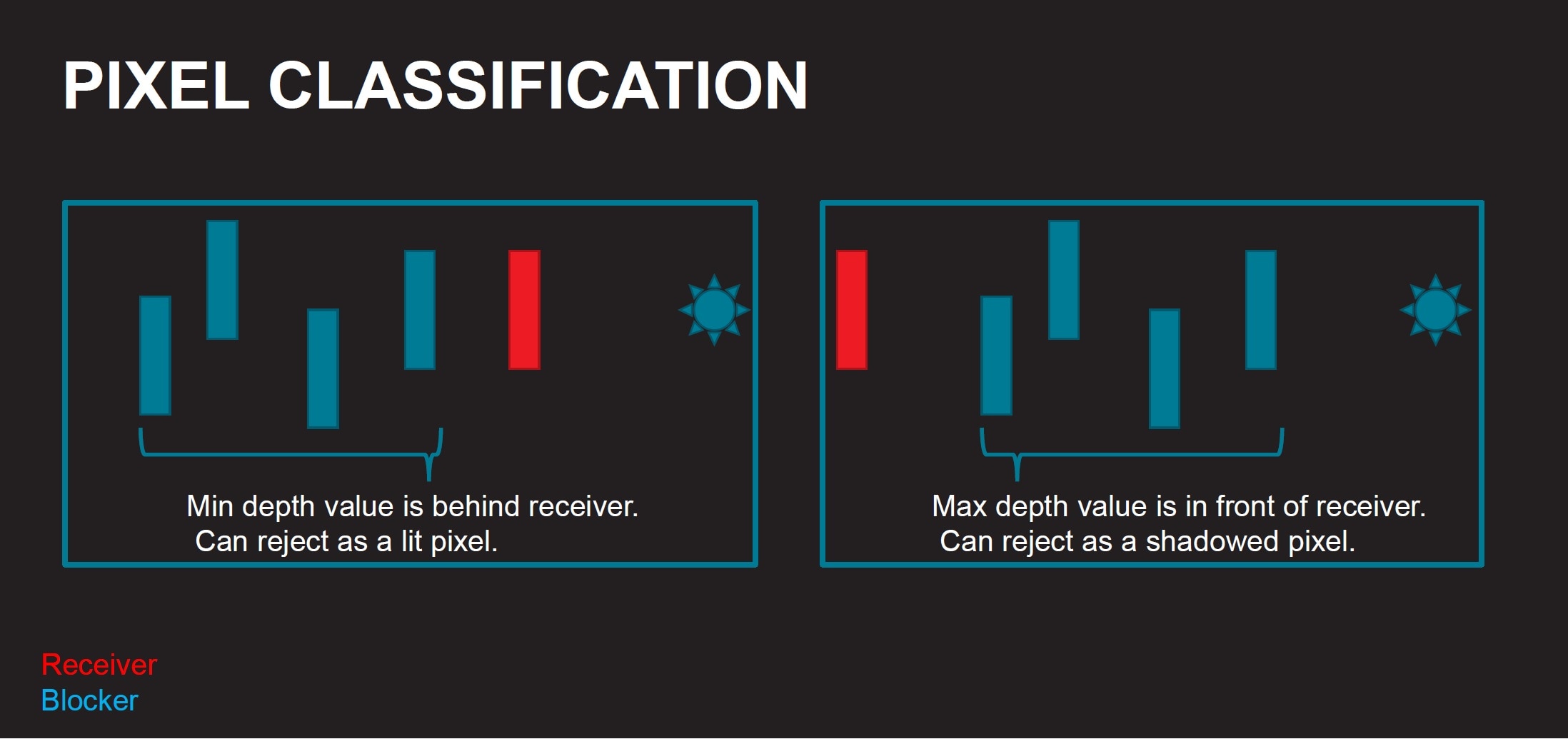

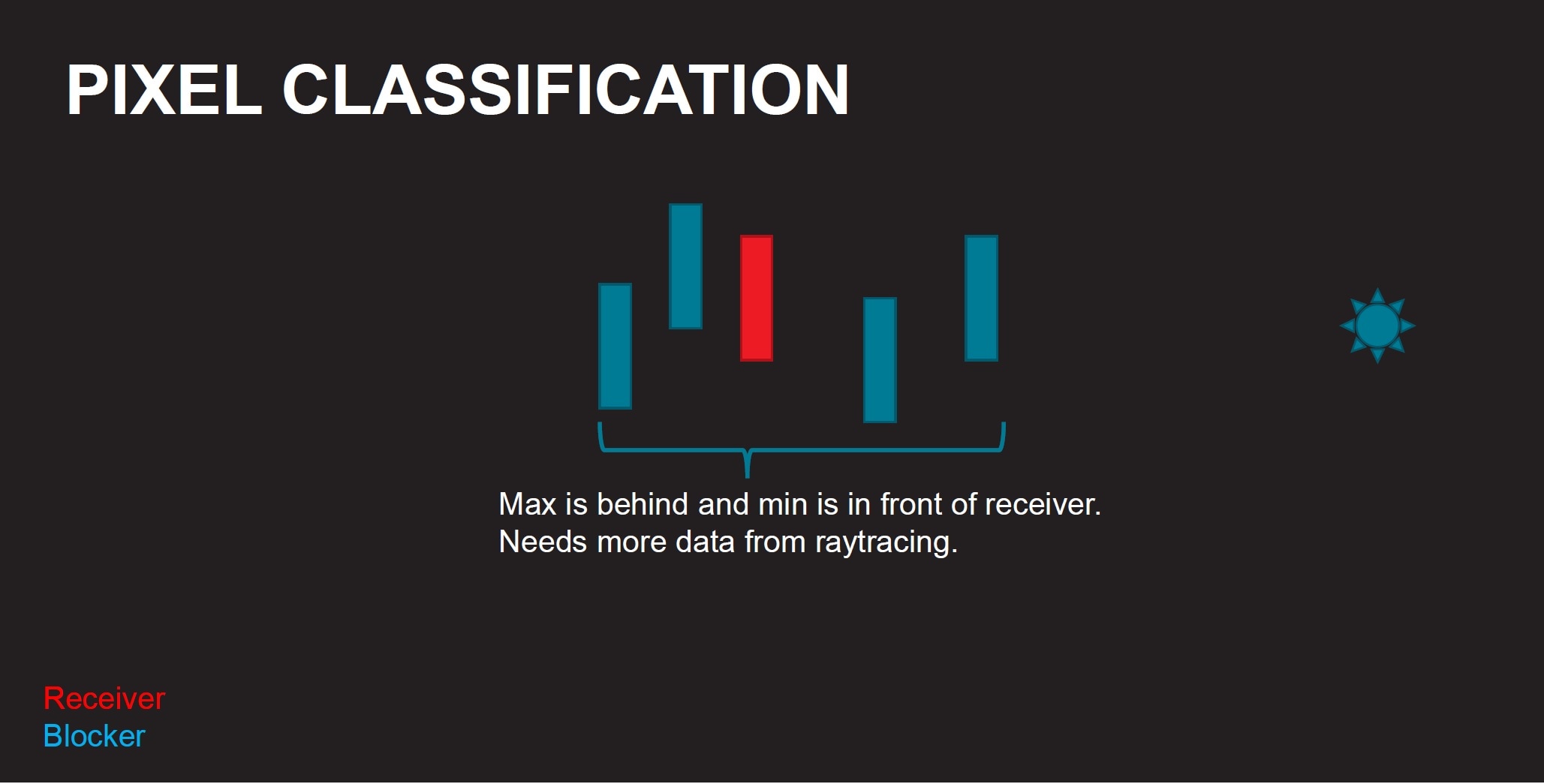

Pixel classification

At this stage, we reject pixels using the maximum and minimum depth values from the shadow map cascades.

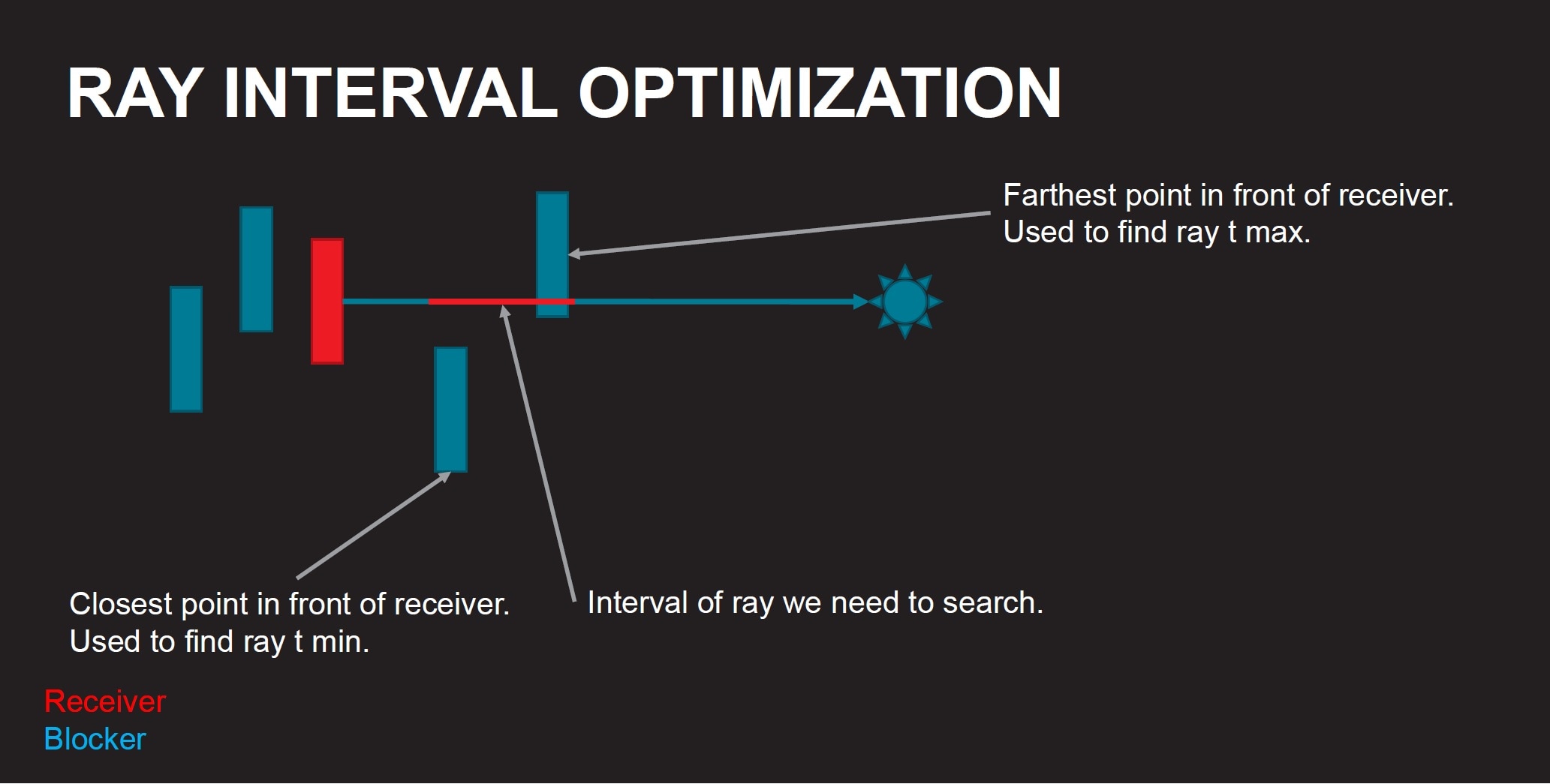

Ray interval

It is also possible to calculate the ray interval using the shadow cascade maps. This information can be stored in the tiles and can later be used in the raytracing pass.

Ray tracing pass

After the tile classification pass, it is possible to use the generated rayHitMask and the list of tiles to launch a raytracing kernel. An example of this can be found in the Hybrid Shadows sample . The following are the expected inputs and outputs of such a pass.

Ray Tracing Inputs:

Depth buffer
- Used to reconstruct world position.
Normal buffer
- Used to offset the ray along the pixel normal.
Tile list
- Used to decide what pixels to fire a ray from.

Ray Tracing Outputs:

Ray hit mask
- uint mask for each 8×4 tile.
Combined ray hit results with the prefilled mask.

This pass uses the tile data generated by the FidelityFX Shadow Classifier to setup each workgroup to operate on an 8×4 tile, which perfectly maps to a thread group size of 32. This pass also makes use of a blue noise texture, which is sampled every frame to create a new ray to fire into the scene. If using the depth interval, the rays can be reversed, as to trace from the sun to the surface for faster traversal though the acceleration structure.

Optimizations used

Wave active mask
- Using a uint to store the results of the blocker search allows a 32:1 reduction in the amount of memory needed to store results.
Ray hit mask
- With one ray per pixel, the hit result buffer memory size can be reduced by 32:1.
Replace point sampling with image loads
- Loads are faster at moving data from the cache to the shader core on RDNA.

AMD FidelityFX Reflection Classifier

Introduction

The FidelityFX Reflection Classifier is a feedback based tile classifier designed for raytraced reflections. It makes use of 8×8 tiles to detect ray tracing needs based on feedback statistics. A safe band area is used to avoid flickering in rapid movement scenarios.

Shading language requirements

HLSL GLSL CS_6_0

Inputs

This section describes the inputs to FidelityFX Reflection Classifier.

Input name	Type	Notes
depth	`Texture2D`	The depth buffer for the current frame
motionVectors	`Texture2D`	The motion vectors for the current frame
normal	`Texture2D`	The normals for the current frame
materialParameters	`Texture2D`	The `aoRoughnessMetallic` buffer for the current frame
environmentMap	`Texture2D`	The environment map to fallback to when screenspace data is not sufficient
radiance	`Texture2D`	The scene radiance
varianceHistory	`Texture2D`	The variance history
hitCounter	`Texture2D`	The ping-pong feedback counter
hitCounterHistory	`Texture2D`	The previous ping-pong feedback counter
extractedRoughness	`Texture2D`	Extracted roughness
rayList	`Buffer`	The ray list to trace with hybrid reflection (uses FidelityFX SSSR)
rayListHW	`Buffer`	The ray list to trace with full hardware raytracing
denoiserTileList	`Buffer`	The tiles requiring denoising
constants	`Constant buffer`	A constant buffer containint information about the camera position, a few transformation matrices and other miscelaneous settings

The technique

The FidelityFX Reflection Classifier detects ray tracing class of 8×8 tiles based on the statistics from the previous frame.

There are three classes of tiles: Full raytracing, checkerboard hybrid, and full hybrid.

For full raytracing, a roll of the dice is used with values of 0 and 1 to allow those tiles to be turned to pure hybrid tiles.

The hit counter is incremented when screen space intersections are successful, otherwise the miss counter is incremented. The hit and miss counters are merged into a feedback counter and are reprojected using the motion vectors.

The feedback counter uses one FfxUint32 value for each 8×8 tile of pixels, represented as 4 8-bit counters for 2 frames of statistics.
